Series SFI-100T Sight Flow Indicator/Transmitter
Brand: Dwyer Instruments, LLC
Images are representations only.

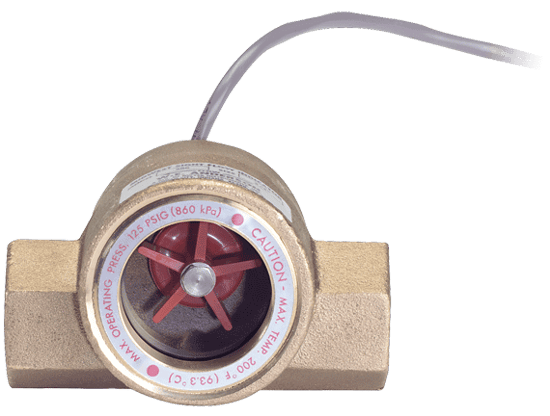

Series SFI-100T Sight Flow Indicator/Transmitter
Brand: Dwyer Instruments, LLCThe Series SFI-100T Sight Flow Indicators & Transmitters is a low cost and durable flow transmitter that combines our popular 100 Series Sight Flow Indicator with our A-711T output sensor for visual and remote monitoring of flow.
The A-711T output sensor has two pulsed voltage signals with one providing a 5 VDC pulse, the other a pulse of the input supply voltage used, ranging from 8 to 28 VDC and a pulsed output with a frequency change proportional to the flow rate.
Features- Constructed of a robust, solid brass body and a tempered glass window
- Bright red impeller yields great visual indication of flow through the window
- Front window can be easily unscrewed to clean out the sight flow indicator
- Ideal for outdoor applications with weatherproof body that is unaffected by UV Light
Specifications
Accuracy
- ± 5 % of Full Scale
Enclosure, Body Material
- Brass
Flow Rate
- 2 to 35 gpm (7.6 to 132.5 LPM)
Frequency
- 0 to 100 Hz
Gasket Material
- Buna-N
Media
- Compatible Fluids
NPT Connection
- 1/2" NPT Female
- 3/4" NPT Female
Output
- 5 Vdc
- 8-28 Vdc
Power Requirement
- 8-28 Vdc
Pressure Range
- bar: 0 to 8.6
- kPa: 0 to 861.8
- psig: 0 to 125
Sensor Orientation
- Horizontal
Temperature Range
- -29° to 100° C (-20° to 212° F)
Wetted Materials
- 300 Stainless Steel
- 316 Stainless Steel
- PBT
Window Material
- Glass
- Monitor Chilled or Hot Water Flow
- Monitoring Water Flow in Chillers
- Cooling and Lubrication Circuits
- HVAC Systems
