Series RTD Resistance Temperature Detector
Brand: Dwyer Instruments, LLC
Images are representations only.

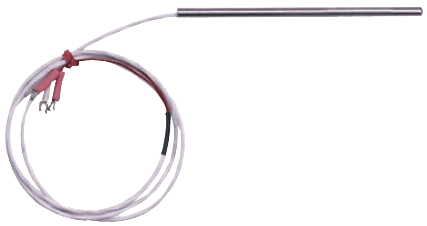

Series RTD Resistance Temperature Detector
Brand: Dwyer Instruments, LLCPrecision Series RTD Resistance Temperature Detector offers excellent accuracy and stability over a wide temperature range.
Industry standard 3-wire 100 ohm (DIN) probes are available in 6" (15 cm), 12" (30.5 cm) or 18" (46 cm) sheath lengths with 30" (76 cm) extension cable and spade lug terminals.
Features- 304 stainless steel sheath
- High temperature rating
Specifications
Insertion 'U' Length
- 15 cm (5.9")
Lagging Extension
- 30" (76 cm)
Sensor / Probe Diameter
- 1/4" O.D.
- 1/8" O.D.
Sensor / Probe Material
- 316 Stainless Steel
Sensor / Probe Type
- Wire Wound
System Pressure
- bar: 17.2
- kPa: 172.37
- psig: 250
Temperature Range
- -200° to 650° C (-328° to 1202° F)
- Air Ducts
- Bearing Temperature
- Oil Temperature Indicator
- Soldering Equipment
- Ovens
- Environmental Test Chambers
- Pharmaceutical Manufacturing
- Food Processing
- Plastic Molding
- Petroleum & Chemical Processing
- Electric Generating Plants
