MLC Load Cell Transmitter
Brand: Yokogawa Electric Corporation

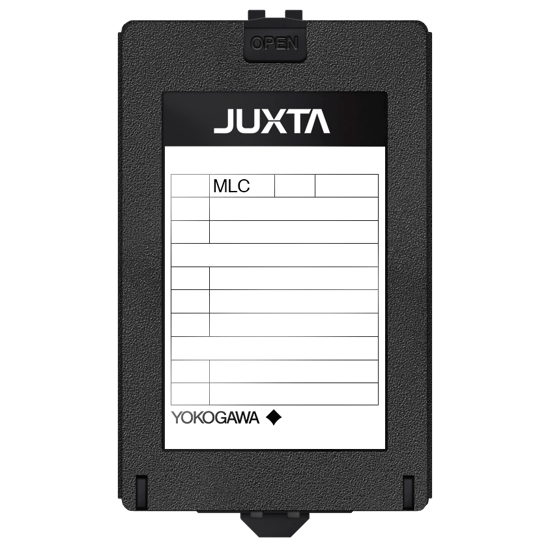

Images are representations only.
MLC Load Cell Transmitter
Brand: Yokogawa Electric CorporationThis plug-in type load cell transmitter supplies bridge voltage to load cell (distortion gauge) etc. It receives mV signal from load cell and converts it into DC voItage or current signals.
Features- Variable Bridge Voltage
- Can Select Remote Sensing Function
- Can Select 3 Kinds of Driving Power Supply
- 2,000 Vac High Voltage Proof
Specifications
Accuracy
- ± 0.1 % of Span
Current
- 1-24 mA DC - Span
- Maximum
Dissipation
- 150 mA at 24 Vdc - Power Dissipation
- 6.5 VA at 100 Vac - Current Dissipation
- 8.5 VA at 200 Vac - Current Dissipation
Electrical Connectors
- M3.5 Screw Terminal
Enclosure, Body Material
- ABS Plastic
Humidity
- 5 to 90 % RH, Non-Condensing
Input Signal
- 1-20 mV/V
Insulation Resistance
- More Than 100 MΩ at 500 Vdc between (Input, Applied Voltage, Remote Sensing), Output, Power Supply Supply, Ground
Mounting
- DIN Rail Mounting
- Wall Mounted
Output
- 0-100 mVdc
- 0-24 mA DC
- -10 to 10 Vdc
Power Supply
- 170-264 Vac (47-63 Hz)
- 24 Vdc ± 10 %
- 85-132 Vac
- 85-150 Vdc
Power Supply Effect
- Less than ± 0.1 % of Span - Power Voltage Fluctuation
Resistance
- 120 to 350 ohms - Bridge Resistance
- 2 to 250 kΩ - Load Resistance (Voltage)
- 750 to 15,000 ohms - Load Resistance (Current)
Response Time
- 150 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- ± 5 % of Span
Supply Voltage
- ± 15 Vdc - Permissible Voltage
- 10 mV-20 Vdc - Span
- 2,000 Vac/minute between (Input, Applied Voltage, Remote Sensing), Output, Power Supply, Ground - Withstand Voltage
- 2-10 Vdc (Standard Adjustment 5 V)
- 2-6 V - with Remote Sensing Function
Temperature Effect
- Less than ± 0.2 % of Span for Change of 10° C (18° F) - Effect of Ambient Temperature Change
Temperature Range
- 0° to 50° C (32° to 122° F)
Zero Offset
- 0 to 200 % - Zero Elevation (Current Signal)
- -100 to 200 % - Zero Elevation (Voltage Signal)
