2110 Level Switch
Brand: Rosemount
Images are representations only.

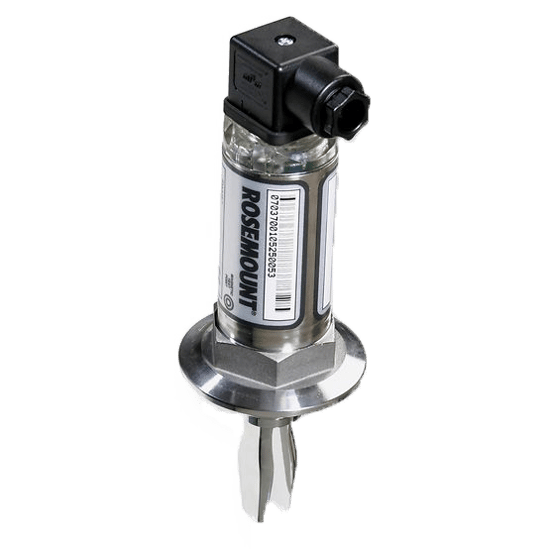

2110 Level Switch
Brand: RosemountRosemount 2110 Level Switch offers reliable level detection with minimum maintenance for narrow spaces and in-pipe measurement.
It is ideal for simple, fast-fit level applications and basic overfill prevention.
Hygienic certificates expand application capability to include sanitary processes.
The Rosemount 2110 has no moving parts, needs no calibration, and is virtually unaffected by process conditions.
The compact stainless steel housing and fast-fit plug-socket connection is perfect for high-volume OEM users.
Features- Magnetic test point makes proof testing of the Rosemount 2110 easy
- Minimal installation restrictions and no calibration required, keeping costs down
- Heartbeat LED provides visual indication
- Rapid wet-to-dry time for highly responsive switching
- ‘Fast Drip’ fork design gives quicker response time, especially with viscous liquids
- 3-A and EHEDG certificates for hygienic applications. Compliance with FDA and ASME-BPE standards
Specifications
Brand
Approvals & Certifications
- CE
- CRN - Canadian Registration Number
- EMC
- LVD
- RoHS
Approvals & Certifications
- 3-A & EHEDG Certificates
- ASME -BPE & FDA Compliant
- TÜV Tested & WHG Approved for Overfill Prevention
BSP Connection
- 1" BSP
- 1" BSPP
- 3/4" BSP
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP66
- IP67
NPT Connection
- 3/4" NPT
Operating Pressure
- psi: -3.62 to 1,450 (kPa: -25 to 10,000, bar: -0.25 to 100)
Operating Temperature
- -40° to 150° C (-40° to 302° F)
Tri-Clamp Connection
- 2" Tri-Clamp
