VJD1 Isolated Single & Dual Output Tachometer
Brand: Yokogawa Electric Corporation
Images are representations only.

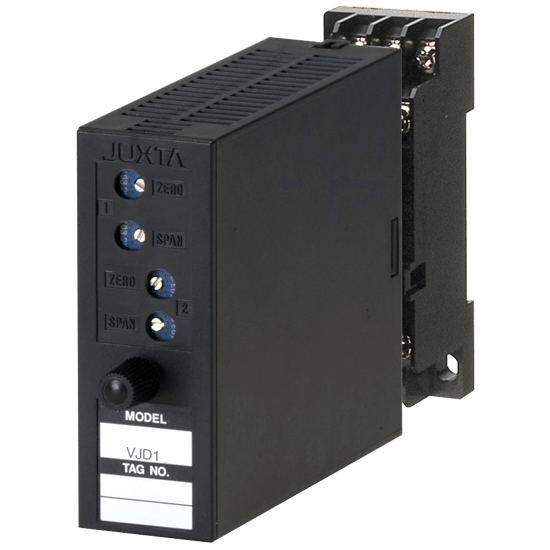

VJD1 Isolated Single & Dual Output Tachometer
Brand: Yokogawa Electric CorporationThe VJD1 is a compact, plug-in tachometer converter that receives single-phase, AC voltage signal from an electric tachometer and converts it into isolated DC voltage or DC current signals.
Features- AC-to-DC Conversion Based on Mean-Value Rectification
- Four Isolated Ports (Input, Output-1, Output-2, Power Supply and Grounding) on a Dual-Output Model
- A Withstanding Voltage of 2,000 Vac
- A Wide Supply Voltage Range - Supporting Both 100 V and 200 V Power Lines of AC or DC
- Close Side-By-Side Mounting
Specifications
Accuracy
- ± 0.3 % of Span
Consumption
- 122 mA at 24 Vdc - Current Consumption
- 5.4 VA at 100 Vac - Power Consumption
- 7.5 VA at 200 Vac - Power Consumption
Current
- 1-24 mA DC for Span - Output Current Signal
Electrical Connectors
- M3 Screw Terminal
Enclosure, Body Material
- ABS Resin
Frequency
- 15 to 1,000 Hz - Input Frequency Range
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity Range
Input
- 0 to 150 Vac
- 120 % (Continuous) - Max.
Insulation Resistance
- 100 MΩ min. at 500 Vdc between Input, Output-1, Output-2, Power Supply & Grounding Terminals Mutually
Mounting
- DIN Rail Mounting
- Mounting on a Side-by-Side Multiple Mounting Base
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Output
- 0-100 mVdc
- 0-24 mA DC
- -10 to 10 Vdc
Power Supply Effect
- Up to ± 0.2 % of Span for a Supply Voltage Range of 85-264 Vac at (47 to 63 Hz), 85-264 Vdc or 12-36 Vdc - Effects of Power Line Regulation
Resistance
- 2 to 250 kΩ min. - DC Voltage Allowable Load Resistance
- 350 to 15,000 ohms, Max.
Response Time
- 2.4 seconds for a 63 % Response (10 to 90 % Change of Range)
Span & Zero Adjustments
- Within ± 5 % of Span
Supply Voltage
- 1,000 Vac for One Minute between Output-1 & Output-2 Terminals - Withstanding Voltage
- 10 mV-20 Vdc for Span - Output Voltage Signal
- 100-240 Vac/dc (-15 %, 10 %) at 50/60 Hz
- 15-30 Vdc (± 20 %)
- 16 mV-150 Vac for Span - Input Voltage Signal
- 2,000 Vac for One Minute between Input, (Output-1, Output-2), Power Supply & Grounding Terminals Mutually - Withstanding Voltage
Temperature Effect
- Up to ± 0.2 % of Span Per 10° C (18° F) - Effects of Ambient Temperature Variations
Zero Offset
- 0 to 200 % for Output Current Signal - Zero Elevation
- -100 to 200 % for Output Voltage Signal - Zero Elevation
