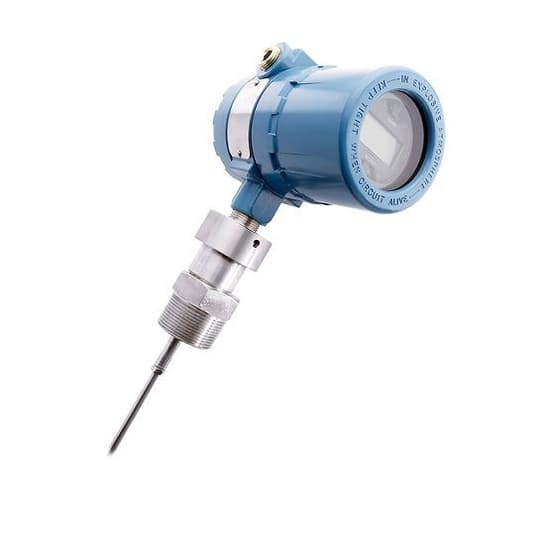

3300 Level Transmitter

Brand: Rosemount
Rosemount Level Transmitter, 3300
Rosemount Level Transmitter, 3300 Rosemount Level Transmitter, 3300
Images are representations only.

3300 Level Transmitter

Brand: Rosemount
Request Information
Favorite
For level and interface measurements, Rosemount 3300 Level Transmitter provides a reliable and cost effective solution for liquid applications.

The Rosemount 3300 has no moving parts, needs no calibration, and is virtually unaffected by process conditions. With top down level and interface measurements you are in total control of your level.
Features
  • The Rosemount 3300 can be equipped with a wide range of probes to fit most applications

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CSA
  • EAC
  • FM
  • IECEx
  • NEPSI
  • TIIS

BSP Connection

  • 1" BSP
  • 1-1/2" BSP
  • G 1"
  • G 1-1/2"

Communication

  • 4-20 mA / HART
  • RS-485 with Modbus

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

NACE & NIST

  • NACE MR-0175, NACE MR-0103

NPT Connection

  • 1" NPT
  • 1-1/2" NPT
  • 2" NPT

Output

  • 4-20 mA

Pressure Range

  • bar: 0 to 40
  • kPa: 0 to 4,000
  • psi: 0 to 580

Process Connection Style

  • ASME /ANSI Flange: 2", 3" 4" (Class 150, 300), DIN Flange: DN 50 / 80 / 100 / 150 PN 16 / 40, JIS Flange: 50A / 80A / 100A / 150A / 200A 10K / 20K

Temperature Range

  • -40° to 150° C (-40° to 300° F)

Tri-Clamp Connection

  • 1-1/2" Tri-Clamp
  • 2" Tri-Clamp
  • 3" Tri-Clamp
  • 4" Tri-Clamp
