Float - BFT
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.

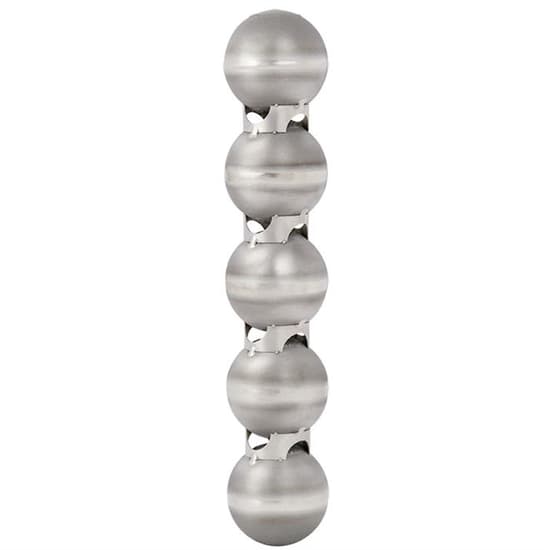

Float - BFT
Brand: WIKA Alexander Wiegand SE & Co. KGThe model BFT float serves for the monitoring of liquids in bypass level indicators.
he magnetic system built into the float transmits the liquid level, contact-free, to externally mounted displays, switches and sensors.
Due to its omni-directional, radial magnetic field, a guide within the tube is not needed.
Features- Sealed, pressure retaining design.
- Density range from 340 kg/m³.
- Pressures up to 400 bar.
- Medium temperatures from -196 to 450 °C.
- Versions for interface layer.
Specifications
Material of Construction
- Stainless Steel 1.4571
- Titanium 3.7035
- PP
- PVDF
- Syntactic foam
Pressure Range
- Up to 400 bar
Medium Temperature
- -196° to 450° C
Density
- 340 to 470 kg/m³
- Float for the monitoring of liquids in bypass level indicators
- Individual design and corrosion resistant materials make the products suitable for a broad range of applications
- Chemical, petrochemical, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants
- Process water and drinking water treatment, food industry, pharmaceutical industry
