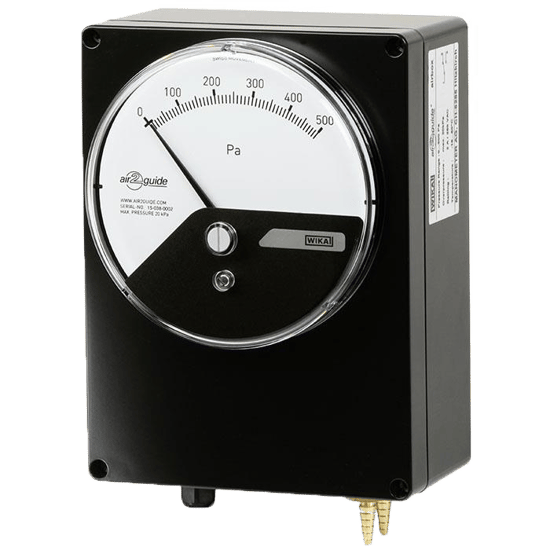

Model A2G-90 Differential Pressure Gauge with Pressure Switch
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.
Model A2G-90 Differential Pressure Gauge with Pressure Switch
Brand: WIKA Alexander Wiegand SE & Co. KGThe air2guide Airbox is a combination of a mechanical analogue indicator and a differential pressure switch, which have been fitted within a plastic case. The case is made from PC/ABS 1625 plastic (H x W x D = 9.45 x 7.52 x 4.33 inches) and with all connections built in. The cover is screwed on.
Features- Compact indicator and pressure switch fitted within a plastic case.
- Single-pole micro switch (change-over contact).
- Switch point adjustable when installed.
- All connections already pre-assembled.
Specifications
Case
- Plastic PC/ABS 1625
Dimensions
- H x W x D = 9.45 x 7.52 x 4.33 inches
Cover
- Screw Retained
Operating Temperature
- Ambient: -22° to +140° C
- Medium: -3.2° to +122° C
Ingress Protection
- NEMA 3 (IP54 per EN 60529 / IEC 529)
Process Connection
- Aluminium, Top Mount
- Compression Fitting for 1/8" or 1/4" Hose I.D.
Electrical Connection
- L-Connector DIN 43 650, 3-Pin + PE
Weight
- 2.71 lb
- For monitoring the differential pressure of air and other non-inflammable and non-aggressive gases
- Monitoring of air filters, fans, industrial cooling circuits, flows in ventilation ducts and the control of air and fire dampers
