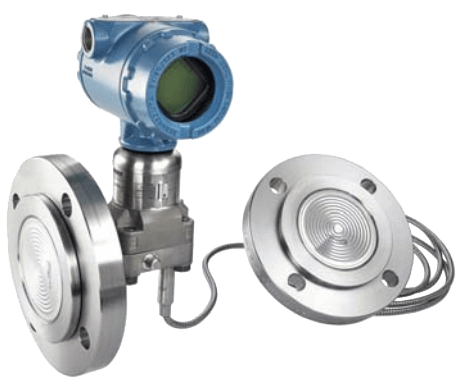

3051SAL Level Transmitter for ERS Application

Brand: Rosemount
Rosemount Level Transmitter for ERS Application, 3051SAL
Images are representations only.

3051SAL Level Transmitter for ERS Application

Brand: Rosemount
Request Information Favorite
Make reliable pressure measurements in extreme conditions with the Rosemount 3051SAL Level Transmitter, a best-in-class solution that offers enhanced capabilities for pressurized and vented tank level measurements.

This transmitter is safety certified and engineered with advanced diagnostics for increased insight.

Designed to allow direct mounting, remote mounting, balanced systems and Tuned-System™ assemblies, this device can meet a variety of demands and process requirements for level applications.
Features
  • Integrated transmitter and direct mount seal in a single model number
  • Variety of process connections including flanged, threaded, and hygienic remote seals
  • Allows for direct mounting, remote mounting and balanced and tuned-systems to meet various application requirements
  • Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
  • Offers a variety of process connections including flanged, threaded and hygienic seals for application flexibility
  • Welded-repairable construction allows the seal system to be repaired and all welded design provides a robust connection for challenging applications
  • Scaled variable allows transmitter to output level units
  • Remote display offers direct mount process connections with access to transmitter interface at grade
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
  • Advanced diagnostics offer diagnostic coverage to detect electrical loop issues and abnormal process conditions

Specifications

Brand

Accuracy

  • ± 0.055 % of Span for Spans less than 10:1, ± [0.015 + 0.005(URL/Span)] % of Span

Alarm

  • Custom Alarm & Saturation Signal Levels
  • NAMUR Alarm & Saturation Signal Levels

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Applications

  • Corrosive, Clogging, or Viscous Processes
  • Extreme Hot & Cold Temperatures
  • Hygienic Requirements
  • Level
  • Special Process Connections

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IEC Ex
  • INMETRO
  • TIIS

Configuration

  • 4-20 mA HART
  • Electronic Remote Sensor (ERS) System
  • HART Protocols

Damping Adjustment

  • User Configurable from 0 to 60 seconds

Diaphragm Material

  • 304L Stainless Steel
  • 316L Stainless Steel
  • Alloy 22 (Hastelloy)
  • Carpenter 20 Stainless Steel
  • Duplex 2507 Stainless Steel
  • Hastelloy C-276
  • Inconel
  • Nickel 201
  • Tantalum
  • Titanium
  • Zirconium 702

Display

  • PlantWeb LCD Display
  • Remote Mount LCD Display & Interface

Electrical Connectors

  • 1/2" NPT Female
  • G 1/2" Female
  • M20 x 1.5
  • PG13.5

Electromagnetic Interference Effect

  • Meets All Relevant Requirements of EN 61326 & NAMUR NE-21

Enclosure Finish

  • Polyurethane Paint

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X / IP66, 68

Fill Material

  • DC 200, DC 704, or DC 705 Silicone Oil
  • Glycerin & Water
  • Inert
  • Neobee M20
  • Propylene Glycol & Water
  • Syltherm XLT
  • Ultra Therm 805

Flange Material

  • 316L Stainless Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150#
  • 1-1/2" (DN 40) - 1500#
  • 1-1/2" (DN 40) - 2500#
  • 1-1/2" (DN 40) - 300#
  • 1-1/2" (DN 40) - 600#
  • 1-1/2" (DN 40) - 900#
  • 1-1/2" (DN 40) - JIS 10K
  • 1-1/2" (DN 40) - JIS 20K
  • 1-1/2" (DN 40) - JIS 40K
  • 1-1/2" (DN 40) - PN 40

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150#
  • 1" (DN 25) - 1500#
  • 1" (DN 25) - 2500#
  • 1" (DN 25) - 300#
  • 1" (DN 25) - 600#
  • 1" (DN 25) - 900#
  • 1" (DN 25) - JIS 10K
  • 1" (DN 25) - JIS 20K
  • 1" (DN 25) - JIS 40K
  • 1" (DN 25) - PN 40

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - 150#
  • 1/2" (DN 15) - 1500#
  • 1/2" (DN 15) - 2500#
  • 1/2" (DN 15) - 300#
  • 1/2" (DN 15) - 600#
  • 1/2" (DN 15) - 900#
  • 1/2" (DN 15) - JIS 10K
  • 1/2" (DN 15) - JIS 20K
  • 1/2" (DN 15) - JIS 40K
  • 1/2" (DN 15) - PN 40

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150#
  • 2" (DN 50) - 1500#
  • 2" (DN 50) - 2500#
  • 2" (DN 50) - 300#
  • 2" (DN 50) - 600#
  • 2" (DN 50) - 900#
  • 2" (DN 50) - JIS 10K
  • 2" (DN 50) - JIS 20K
  • 2" (DN 50) - JIS 40K
  • 2" (DN 50) - PN 10
  • 2" (DN 50) - PN 100
  • 2" (DN 50) - PN 16
  • 2" (DN 50) - PN 40
  • 2" (DN 50) - PN 63

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150#
  • 3" (DN 80) - 1500#
  • 3" (DN 80) - 2500#
  • 3" (DN 80) - 300#
  • 3" (DN 80) - 600#
  • 3" (DN 80) - 900#
  • 3" (DN 80) - JIS 10K
  • 3" (DN 80) - JIS 20K
  • 3" (DN 80) - JIS 40K
  • 3" (DN 80) - PN 10
  • 3" (DN 80) - PN 100
  • 3" (DN 80) - PN 16
  • 3" (DN 80) - PN 40
  • 3" (DN 80) - PN 63

Flange Size - 3/4” (DN 20)

  • 3/4" (DN 20) - 150#
  • 3/4" (DN 20) - 1500#
  • 3/4" (DN 20) - 2500#
  • 3/4" (DN 20) - 300#
  • 3/4" (DN 20) - 600#
  • 3/4" (DN 20) - 900#
  • 3/4" (DN 20) - JIS 10K
  • 3/4" (DN 20) - JIS 20K
  • 3/4" (DN 20) - JIS 40K
  • 3/4" (DN 20) - PN 40

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150#
  • 4" (DN 100) - 1500#
  • 4" (DN 100) - 2500#
  • 4" (DN 100) - 300#
  • 4" (DN 100) - 600#
  • 4" (DN 100) - 900#
  • 4" (DN 100) - JIS 10K
  • 4" (DN 100) - JIS 20K
  • 4" (DN 100) - JIS 40K
  • 4" (DN 100) - PN 10
  • 4" (DN 100) - PN 100
  • 4" (DN 100) - PN 16
  • 4" (DN 100) - PN 40
  • 4" (DN 100) - PN 63

Humidity

  • 0 to 100 % RH

Input Power

  • 4-20 mA HART: 16-42.4 Vdc

Mounting

  • Direct Mount Seal System

NACE & NIST

  • NACE MR-0103, MR-0175

NPT Connection

  • 1" NPT Female
  • 1/4" NPT Female
  • 1-1/4" NPT Female
  • 3/4" NPT Female

O-Ring Material

  • Glass-Filled PTFE
  • Graphite-Filled PTFE

Output

  • 2-Wire 4-20 mA

Overpressure & Static Pressure Limits

  • 0 psia to the Flange Rating or Sensor Rating, whichever is Lower

Power Supply Effect

  • ± 0.005 % of Calibrated Span Per Volt

Pressure Range

  • bar: -1.013 to 689.4
  • inH₂O: -393 to 1,000
  • kPa: 101.3 to 68,948
  • psi: -14.7 to 10,000

Pressure Type

  • Absolute
  • Gauge

Process Temperature

  • -40° to 149° C (-40° to 300° F)

Storage Temperature

  • -46° to 85° C (-50° to 185° F)

Tri-Clamp Connection

  • 1-1/2" Sanitary Clamp
  • 2" Sanitary Clamp
  • 3" Sanitary Clamp

Vibration Effect

  • > ± 0.1 % of URL

Volumetric Displacement

  • > 0.005 in³ (0.08 cm³)

Wetted Materials

  • 304L Stainless Steel
  • 316L Stainless Steel
  • Alloy 22 (Hastelloy)
  • Carpenter 20 Stainless Steel / Alloy 20 or Incoloy
  • Duplex 2505 Stainless Steel
  • Duplex 2507 Stainless Steel
  • Hastelloy C-276
  • Inconel
  • Nickel
  • Tantalum
  • Titanium
  • Zirconium 702
