5600 Radar Level Transmitter

Brand: Rosemount
Rosemount Level Transmitter, 5600

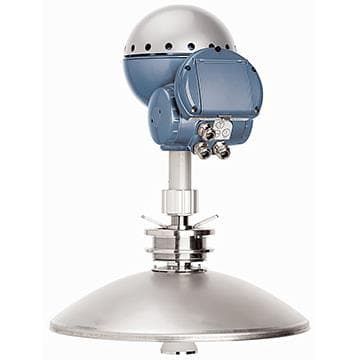

Images are representations only.

5600 Radar Level Transmitter

Brand: Rosemount
Request Information
Favorite
The Rosemount 5600 Level Transmitter allows for advanced processing and is suitable for high temperature and high pressure applications as well as for measuring solids.

The strength of a 4-wire device is its high sensitivity and its ability to detect weak radar echoes in challenging process environments. The built-in diagnostics are able to detect disturbing objects and identify the true echo.
Features
  • Suitable for most applications due to a wide selection of materials, process connections, antenna styles, and accessories
  • Easy connection with adjustable power supply, 24 Vdc or 110-240 Vac, 0 to 60 Hz
  • Interchangeable transmitter heads and antennas

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CSA
  • EAC
  • FCC
  • FM
  • IECEx

Approvals & Certifications

  • TÜV Tested & WHG Approved for Overfill Prevention

Communication

  • 4-20 mA HART
  • Modbus

Cover Material

  • PTFE

Flange Material

  • 316L Stainless Steel

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150#
  • 4" (DN 100) - PN 16

Flange Size - 6” (DN 150)

  • 6" (DN 150) - 150#
  • 6" (DN 150) - PN 16

Flange Size - 8” (DN 200)

  • 8" (DN 200) - 150#
  • 8" (DN 200) - PN 16

Frequency

  • Operating Frequency: FMCW 10 GHz

O-Ring Material

  • Ethylene Propylene (EPDM)
  • Kalrez 6375 Perfluoroelastomer
  • Nitrile Butadiene (NBR)
  • Viton Fluoroelastomer

Operating Pressure

  • psi: 0 to 798 (kPa: 0 to 5,500, bar: 0 to 55)

Operating Temperature

  • -40° to 400° C (-40° to 750° F)

Output

  • 4-20 mA

Power Supply

  • 110-240 Vac 0-60 Hz
  • 24 Vdc

Pressure Range

  • bar: 0 to 55
  • kPa: 0 to 5,500
  • psi: 0 to 798

Tri-Clamp Connection

  • 3" Tri-Clamp
  • 4" Tri-Clamp
  • 6" Tri-Clamp
  • 8" Tri-Clamp
