OEM Pressure Transmitter - O-10
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.

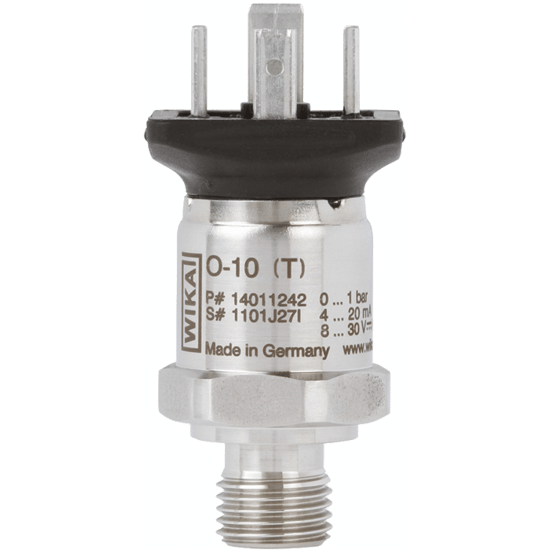

OEM Pressure Transmitter - O-10
Brand: WIKA Alexander Wiegand SE & Co. KGThe WIKA O-10 pressure transmitter is designed to meet the pressure measurement requirements in many industrial and commercial applications.
The O-10 features, specifications, and price make it suitable for OEM applications with an annual quantity of more than 1000 units per part number. The minimum release size is 50 pieces.
Features- Measuring ranges from 0 ... 6 bar to 0 ... 600 bar.
- Non-linearity 0.5 %.
- Standard industrial signals.
- Electrical connection: Angular connector form A and C, circular connector M12 x 1, Metri-Pack series 150, cable outlet 2 m unshielded or shielded.
- Many internationally customary process connections.
Specifications
Temperature Range
- 59° to 77° F (15° to 25° C)
Humidity
- 45 % to 75 % RH
Process Connection
- G 1/8" B, G 1/4" B, G 1/4" Female, G 3/8" B
- G 1/4 A, M14 x 1.5
- 1/8" NPT, 1/4" NPT, 1/4" NPT Female
- R 1/4", R 3/8"
- PT 1/4", PT 3/8"
- 7/16"-20 UNF BOSS, 9/16"-18 UNF BOSS
Seal Material
- NBR, FPM/FKM
Wetted Material
- 316L Stainless Steel, 13-8 PH
- Hydraulics and pneumatics
- Pumps and compressors
- Machine controls
- Building services
