MA5 Free Range Type Distributor

Brand: Yokogawa Electric Corporation

MA5 Free Range Type Distributor

Brand: Yokogawa Electric Corporation

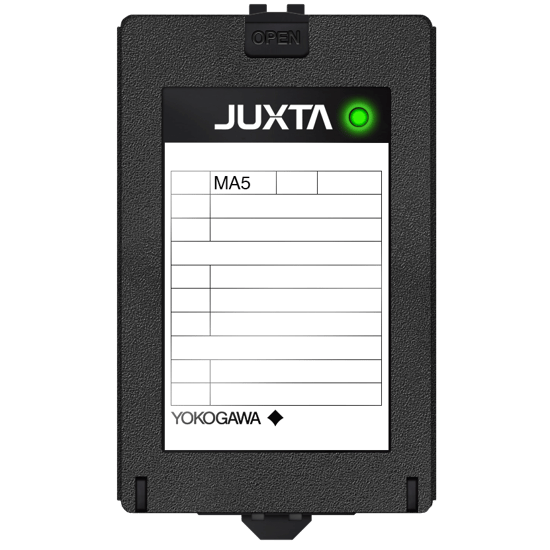

The MA5 is a plug-in type distributor that is used in combination with a two-wire type transmitter to convert the transmitter’s 4-20 mA DC signals into isolated DC current or DC voltage signals.
Features
  • Output range setting, selection of square root extractor and breakpoint linearization (breakpoint setting), I/O adjustment, I/O monitoring, and loop back test can be made using the optional Parameter Setting Tool (VJ77) or Handy Terminal (JHT200)
  • The operation indicating lamp shows the operation status, abnormalities in a setting etc
  • I/O adjustment can be made using the switches on the front panel of the MA5 without a setting tool such as Handy Terminal
  • Supports BARD-800 and -810

Specifications

Accuracy

  • ± 0.05 % - Input & Output Accuracy
  • ± 0.1 % of Span
  • ± 1 % of Span - When the Input is 2 % or Less

Approvals & Certifications

  • UL 94 V-0, UL 94 V-1

Consumption

  • 2.7 W at 110 Vdc - Power Consumption
  • 2.8 W at 24 Vdc - Power Consumption
  • 5.5 VA at 100 Vac - Power Consumption
  • 7.5 VA at 200 Vac - Power Consumption

Electrical Connectors

  • M3.5 Screw Terminal
  • Plug-In Connector

Humidity

  • 5 to 90 % RH, Non-Condensing - Operating Humidity

Input

  • 40 mA DC - Max.

Input Signal

  • 4-20 mA DC Signal from Transmitter

Insulation Resistance

  • 100 MΩ at 500 Vdc between Input, Output, Power Supply, & Grounding Terminals Mutually

Linearization

  • -6 to 106 % (Both Input & Output) - Allowable Setting Range of Breakpoint
  • Breakpoint: up to 32-Points

Materials of Construction

  • ABS Resin & Polycarbonate Resin (Black), UL 94 V-0
  • ABS Resin (Black), UL 94 V-0
  • Modified Polyphenylene Oxide Resin, Including Glass Fiber (Black), UL 94 V-1 - Socket
  • PBT Resin, Including Glass Fiber (Black), UL 94 V-0

Mounting

  • DIN Rail Mounting
  • Wall Mounted

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Operating Voltages

  • 12-48 V at 15-40 Vdc
  • 85-264 V at 100-240 Vac/Vdc

Output

  • ± 10 Vdc
  • ± 100 mVdc
  • 0-20 mA DC
  • 15 V, Max.

Power Supply

  • 100-240 Vac/dc (-15 %, 20 %) 50/60 Hz
  • 15-40 Vdc (± 20 %)
  • 25.25 ± 0.25 Vdc (Provided with a Current Limiter to Keep the Current between 25 & 35 mA) - Transmitter Power Supply

Power Supply Effect

  • ± 0.1 % of Span or Less for the Fluctuation within the Operating Range of Each Power Supply Voltage Specification

Resistance

  • 10 kΩ or more for ± 10 Vdc - Allowable Load Resistance for Voltage Output
  • 2 kΩ or more for ± 5 Vdc - Allowable Load Resistance for Voltage Output
  • 250 kΩ or more for ± 100 mVdc - Allowable Load Resistance for Voltage Output
  • 250 ohms - Input Resistance

Response Time

  • 150 ms, 63 % Response (10 to 90 %)

Span & Zero Adjustments

  • ± 1 % of Span or More - Input Adjustment
  • ± 5 % of Span or More - Output Adjustment

Supply Voltage

  • 2,000 Vac for 1 Minute between Input, Output, Power Supply & Grounding Terminals Mutually - Withstand Voltage

Temperature Effect

  • ± 0.15 % of Span or Less for a Temperature Change of 10° C (50° F) - Effect of Ambient Temperature Change
