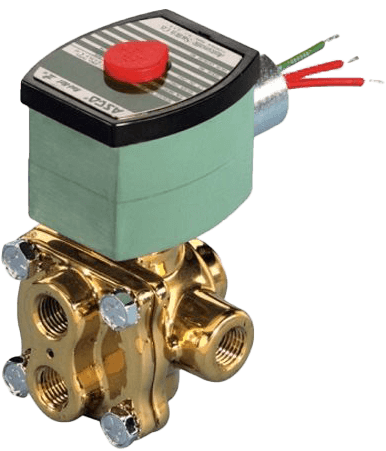

ASCO 342-S Series General Service Solenoid Valves

Brand: ASCO
Images are representations only.

ASCO 342-S Series General Service Solenoid Valves

Brand: ASCO
Request Information
Favorite
The ASCO Series 342-S, also known as 8342, is a line of high-flow, slide-style 4-way valves available with single or dual solenoids.

Its direct-acting operation and high-flow construction make it ideal for analytic and diagnostic equipment, biofuels, dust collector systems, heating equipment, and refining applications.
Features
  • Dual-solenoid operation: solenoid may be energized momentarily (1/10 second) or continuously
  • Mechanical detent on dual solenoids holds last position, even after loss of electric power, pneumatics, or pressure
  • No minimum operating pressure differential required to shift valve
  • Optional flow control regulates cylinder speed independently in either direction
  • Mountable in any position
  • Available in direct mount constructions

Specifications

Brand

Body Material

  • Brass, Stainless Steel

Flow

  • From .05-.1 Cv, from .43 to .86 Kv

Function

  • 4-Way - 4/2

Media

  • Air, Inert Gas, Light Oil, Water

Operating Environment

  • Indoor, Outdoor

Pipe / Port Size

  • 1/4, 3/8

Port Type

  • Female NPT

Standards & Regulations

  • CSA, Typical 1, Typical 2, Typical 3, Typical 3S, Typical 4, Typical 4X, Typical 6, Typical 6P, Typical 7, Typical 9, UL

Valve Actuation

  • Solenoid - Direct-Acting

Voltage

  • 125 DC Battery Charging, 110 AC, 12 DC, 120 AC, 250 DC Battery Charging, 480 AC/50, 50/60, 60
