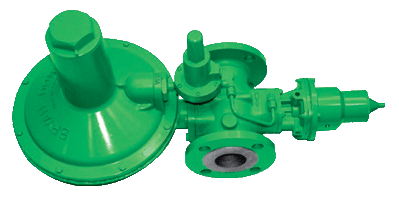

HON 273PL Pilot-Operated Regulator

Images are representations only.

HON 273PL Pilot-Operated Regulator

The Honeywell HON 273PL is part of the Honeywell gas pressure regulator series for gas transmission and distribution in offtake stations in commercial and industrial facilities.

The pilot operated gas regulator is ideal for natural and manufactured gases of non-aggressive nature, including nitrogen, carbon dioxide, propane and butane.

What Is It?

Features include:

Fail-closed operation
Installation of different valve seat diameters is available
Can be fitted with an over-pressure cut-off valve (OPCO) or an under-/over-pressure cut-off valve (UPCO/OPCO)
Pilot-operated for superior accuracy
PFM application version available (+/- 1% abs.)
Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
Max. inlet pressure pu max:up to 19 bar (10 bar with Safety Shut-off Valve)
Outlet pressure range Wd:0.14 to 2 bar
SSV setting range (see SSV HON 309)
Connection: R 1 ¼", R 1 ½", R 2"
Flange connection
- DN 50 (inlet/outlet)
- Class (ANSI) 150RF, Class (ANSI) 150FF, PN 16RF and PN 16FF
Temperature range: 20 to 60 °C

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
