Hx438 Steam Sterilizable Dissolved Oxygen Sensor
Brand: Rosemount
Images are representations only.

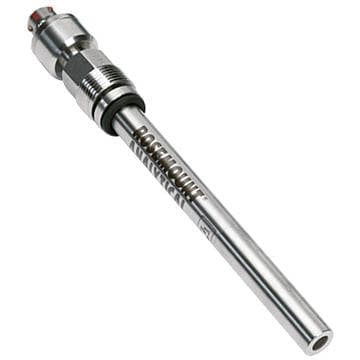

Hx438 Steam Sterilizable Dissolved Oxygen Sensor
Brand: RosemountThe Model Hx438 sensor is a membrane-covered amperometric sensor designed to meet the demanding requirements of the biotechnology, pharmaceutical, and food and beverage industries.
Features- Available in a 120 mm length
- PG 13.5 or VP6 Process Connection
- Tolerates repeated steam sterilization
- Sensor response practically independent of flow
- Fast response time
Specifications
Brand
BSP Connection
- Mechanical Connection: G 1-1/4"
Insertion 'U' Length
- 2.75" (70 mm)
Materials of Construction
- Insertion: 316 Stainless Steel
Measuring Range
- 0 to 20 ppm
- 0 to 250 % Saturation
Operating Temperature
- 0° to 130° C (32° to 266° F)
Pressure Range
- psig: 0 to 87 (kPa: 0 to 600, bar: 0 to 6)
Sensor, Probe Connection
- PG 13.5 Thread
Temperature Range
- Insertion Mounting Assembly: -10° to 140° C (-14° to 284° F)
Wetted Materials
- EPDM
- Stainless Steel
