58C Cut-to-Fit Temperature Sensor
Brand: Rosemount
Images are representations only.

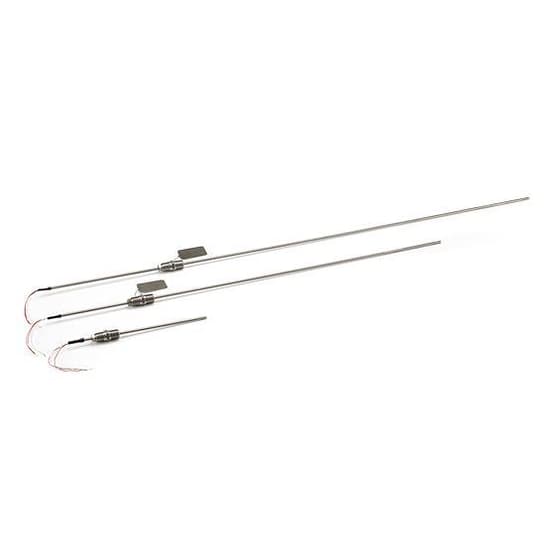

58C Cut-to-Fit Temperature Sensor
Brand: RosemountEngineered as a customizable solution, the Rosemount 58C Cut-to-Fit Temperature Sensor is an industry-standard, platinum resistance temperature detector (RTD) sensor.
This sensor offers cut-to-fit capability and may be shortened to any length via a standard tube cutter, which eliminates the need to stock large selections of sensors in specific lengths. For added application flexibility, this adjustable sensor can be installed in a thermowell with either a fixed or adjustable mounting fitting.
Features- Designed as an industry-standard, platinum RTD sensor for linear and accurate process temperature measurements
- Cut-to-fit capability allows sensor to be shortened with a standard tube cutter to meet application specifications
- Available in 12-, 24-, 36-, and 48-in. lengths for application flexibility
- Customizable design eliminates the need to stock a large selection of sensors in specific lengths for cost-efficiency
- Variety of connection heads and mounting fittings available to fulfill process requirements
Specifications
Brand
Insertion 'U' Length
- 12" to 48"
Materials of Construction
- Connection Head: Aluminum
- Connection Head: Polypropylene
- Rosemount Stainless Steel Connection
- Sensor: Platinum
NPT Connection
- 1/2"-14 ANPT Compression or Spring Loaded Fitting
Operating Temperature
- -50° to 200° C (-58° to 392° F)
Resistance
- Insulation Resistance: 500 MΩ min. when Measured at 50 Vdc at Room Temperature
Stability
- ± 0.035 %, Max.
