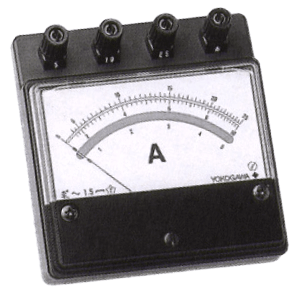

2053 Miniature Portable Ammeter & Voltmeter
Brand: Yokogawa Electric Corporation
Images are representations only.
2053 Miniature Portable Ammeter & Voltmeter
Brand: Yokogawa Electric CorporationThe E series of miniature portable instruments consists of JIS C 1102-2 Class 1.0 and Class 1.5 instruments.
These instruments are functional and compact, making them suitable for labs at research centers and schools.
They are also very useful for factory setups in which numerous instruments are arranged on a small tabletop area, and they are small enough to be carried for maintenance service use.
Features- Useful for both high-sensitivity and large-volume measurements
- DC: 30 µA~30 A, 0.3 V~300 V
- AC: 500 µA~25 A, 3 V~300 V
- Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
- Small and lightweight, with easy-to-read mirrored scale
Specifications
Class
- JIS C 1102 Equivalent to Class 1.5
Current
- 30 µA to 30 A - DC
- 500 µA to 25 A - AC
Frequency
- 50/60 Hz - Rated Frequency
Humidity
- 25 to 80 % RH
Insulation Resistance
- > 10 MΩ at 500 Vdc - between Electrical Circuit & the Case
Length
- 3.46" (88 mm) - Scale Length
Mounting Position
- Horizontal
Operating Temperature
- 0° to 40° C (32° to 104° F)
Principle of Operation
- Moving Iron Typical
Rotation
- 90° - Deflection Angle
Storage Temperature
- -10° to 50° C (14° to 122° F)
Style
- Bladed Needle (Red)
Supply Voltage
- 0.3 to 300 Vdc
- 2,000 Vac for 5 seconds - between Electrical Circuit & the Case - Voltage Test
- 3-300 Vac
