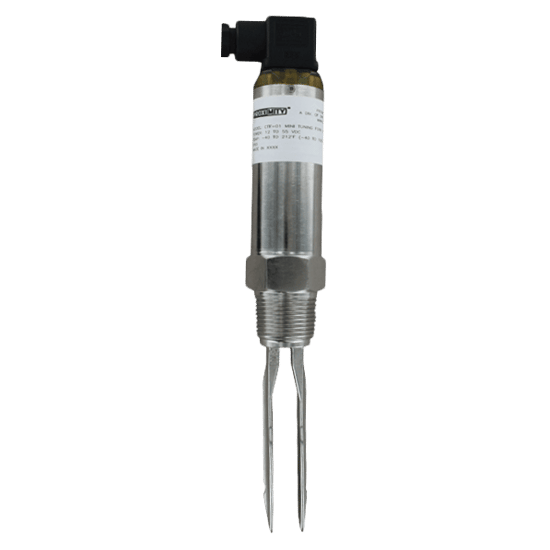

The CTF incorporates a piezoelectric crystal that vibrates the fork at its natural frequency. When the fork comes in contact with a material, the vibration is dampened and the switch changes state. As the fork becomes free of material, the switch changes back to its normal state.

The unit is not affected by vibration from conveying systems, motors, or the movement of material. Its compact size and DIN connection allow for application in places a larger tuning fork level switch may not be suitable, providing great versatility.

The Model CTF is easy to use with no calibration required, and no mechanical moving parts mean no routine maintenance.

The CTF is not affected by the dielectric constant of the sensed material, making it superior to a comparable capacitance level switch for applications where the dielectric constant is low, more than one material is being used in the single vessel, and when material moisture content can change.

The level switch is also great for applications when the bulk density is too low for a rotating paddle level switch, making it the ideal choice for low density bulk solids and liquids. Comes standard with a user friendly PNP/NPN configurable output..
