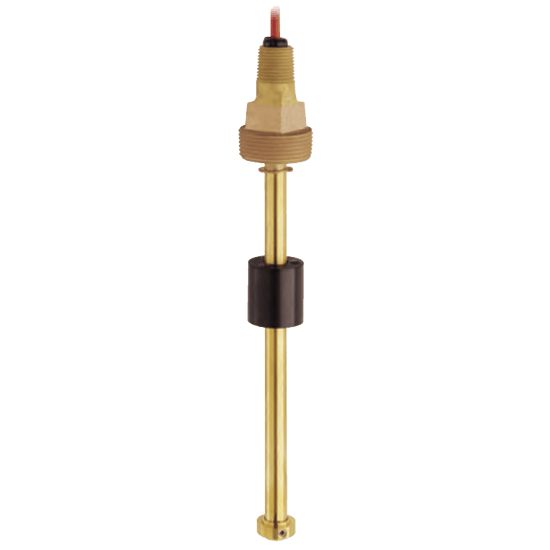

Series CLT Continuous Level Transmitter
Brand: Dwyer Instruments, LLC
Images are representations only.
Series CLT Continuous Level Transmitter
Brand: Dwyer Instruments, LLCContinuous Output Level Transmitters provide up to the minute tank level monitoring.
Customize level transmitters to meet application requirements. Transmitters can be configured for 4 to 20 mA or proportional voltage output, stainless steel or Buna-N floats, and lengths up to 72˝ (183 cm).
Features- Customized stem length, actuation point, distance between floats, and lead wire lengths
- 4 to 20 mA or proportional voltage output outputs continuous level indication

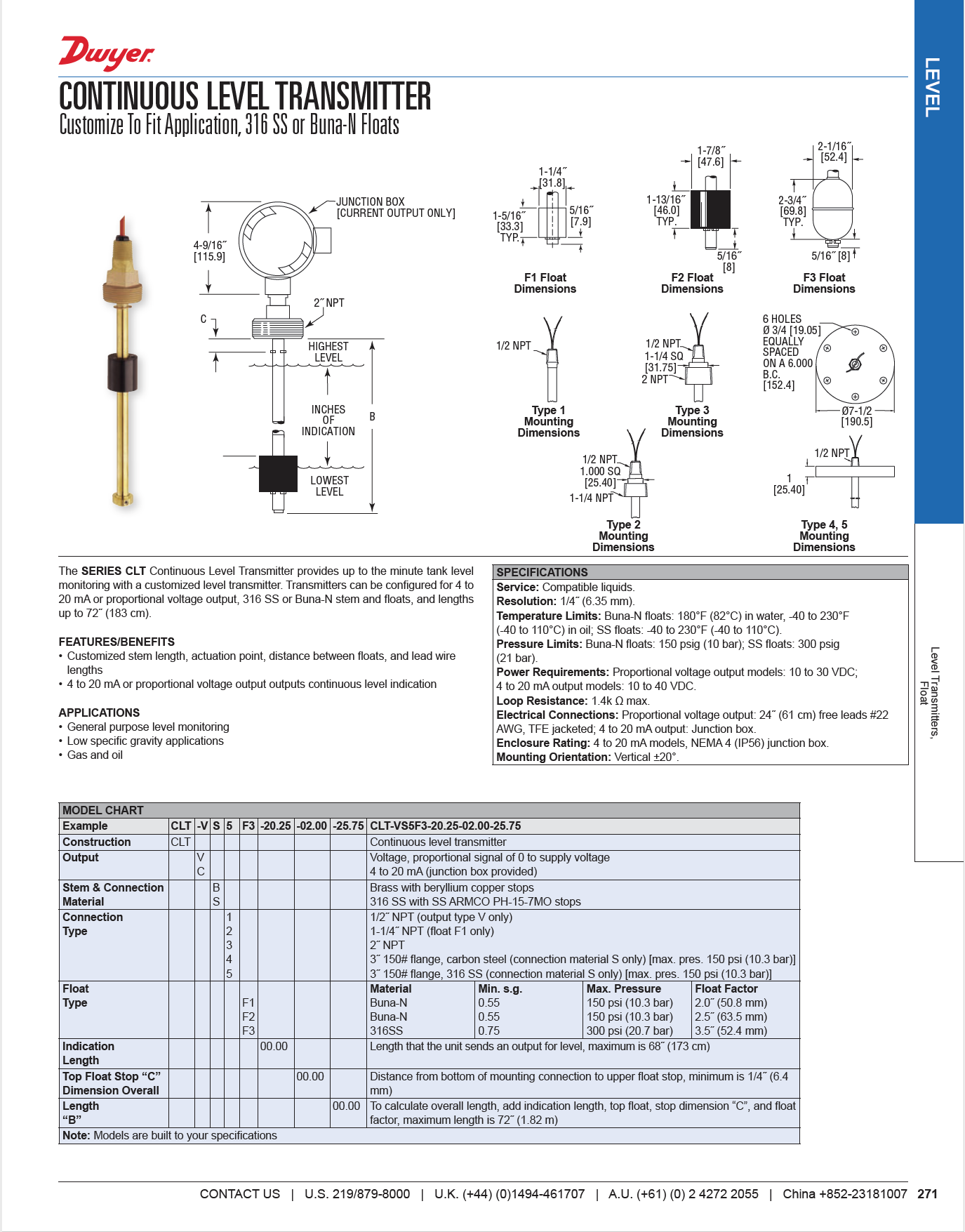

Specifications
Electrical Connectors
- 22 AWG, 24" (61 cm)
- Junction Box
- TFE Jacketed
Environmental Protection
- IP56
- NEMA 4
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150#
Length
- 68" (6.4 mm) - Indication Length, max.
- 72" (1.82 m) - Overall Length, max.
Loop Resistance
- 1.4 kΩ
Media
- Compatible Liquids
NPT Connection
- 1/2" NPT Male
- 1-1/4" NPT Male
- 2" NPT Male
Output
- 10-40 Vdc
- 4-20 mA
Power Requirement
- 10 to 30 Vdc, 4-20 mA - Proportional Voltage Output
- 10-40 Vdc
Pressure Range
- bar: 10.34 to 20.68
- kPa: 1034 to 2068
- psi: 150 to 300
Resolution
- 1/4"
Sensor Orientation
- Vertical ± 20°
Stem Material
- 316 Stainless Steel with Stainless Steel ARMCO PH-15-7MO Stops
- Brass
Temperature Range
- -40° to 110° C (-40° to 230° F)
- General Purpose Level Monitoring
- Low specific Gravity Applications
- Gas and Oil
