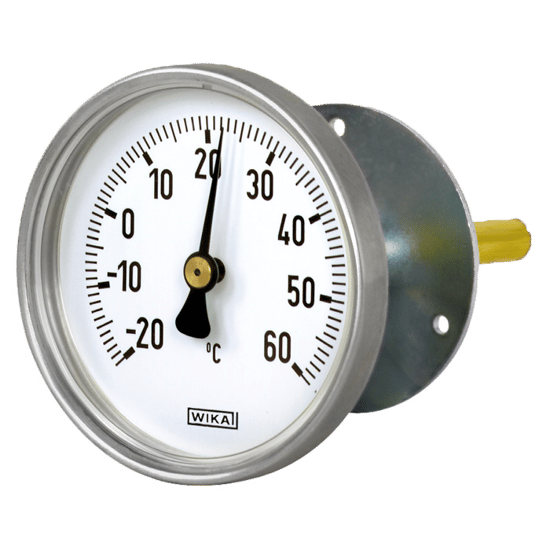

Model 48 Bi-Metallic Thermometer
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.
Model 48 Bi-Metallic Thermometer
Brand: WIKA Alexander Wiegand SE & Co. KGThe model A48 bimetal thermometer has been specifically developed for use in air-conditioning and refrigeration technology for measuring the temperature in air ducts.
Due to the flexibly adjustable flange, the thermometer can be adapted to all standard wall thicknesses of pipe insulations.
Features- Accuracy class 2.
- Nominal size 63, 80, 100 and 160.
- Scale ranges from -30 ... +50 °C to 0 ... +120 °C.
Specifications
Measuring Element
- Bimetal coil
Nominal Size in mm
- 63, 80, 100 and 160
Connection
- Option: flange diameter d2 = 50 m
- Standard: flange diameter d2 = 61 mm
- Flange, Steel Zinc-Plated, Adjustable on Stem
Stem
- other insertion lengths on Request
- Minimum immersion depth lmin = approximately 60 mm
- Ø 9 mm Copper Alloy
- Insertion length l = 160, 200 and 300 mm
Accuracy Class
- Class 2 per EN 13190
Case
- Aluminium
Dial
- Aluminium, White, Black Lettering
Pointer
- Aluminium, Black
Window
- Acrylic Plastic
Zero Adjustment
- At Bottom of Stem
- Air-conditioning and refrigeration systems
- Ventilation systems
