ISC40GJ Inductive Conductivity Sensor

Brand: Yokogawa Electric Corporation

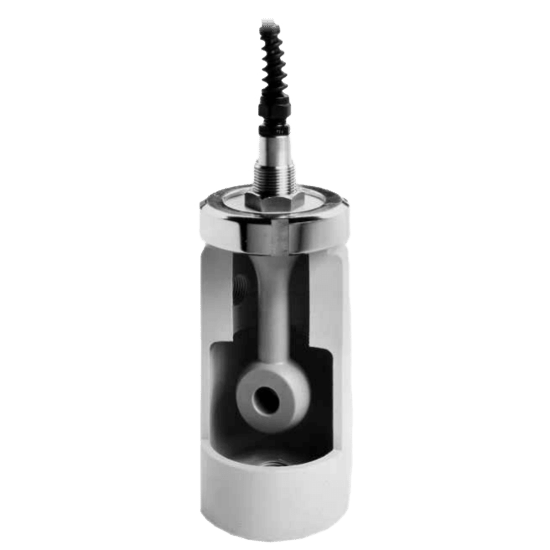

Yokogawa Inductive Conductivity Sensor, ISC40GJ
Images are representations only.

ISC40GJ Inductive Conductivity Sensor

Brand: Yokogawa Electric Corporation
Request Information Favorite
The ISC40J sensors are designed for use with the FLXA202/FLXA21 2-wire Analyzer, ISC202 2-wire transmitter and the ISC450G 4-wire converter.

This combination exceeds all expectations for conductivity measurement in terms of reliability, accuracy, rangeability and price performance.

This innovative inductive conductivity sensor provides highly accurate measurements over a wide measuring range (1 µS/cm to 1999 mS/cm) and process temperature range (-10° to 130° C, -10° to 105° C for ISC40SJ-TT) without changing the cell constant and conducting recalibration.

The erosion/abrasion resistant PEEK (Poly Ether Ether Ketone), which also features excellent chemical resistance in all solutions except Fluoric Acid or Oxidizing Concentrated Acids.

The PEEK sensor is provided with a rugged Stainless Steel mounting thread/nut/ gasket combination for ultimate flexibility in installation using bulk head installation technique.

There is also a wide range of holders and options available for reliable in-line or offline installation with double O-ring seals for long service life of the sensor.

The ISC40J have a large bore for optimal resistance to fouling processes and when properly installed, the flow will keep the sensor clean, to help avoid measuring errors.
Features
  • Inductive Conductivity technique for elimination of fouling and polarization errors.
  • Wide bore sensors for long term stability.
  • Installation flexibility due to wide range of holders and due to the use of universal bulkhead construction.
  • A single sensor can maintain the high resolution and accuracy, and measure the conductivity in an extremely brood range.
    • Minimum span: 100 μS/cm
    • Maximum span: 1999 mS/cm

Specifications

Brand

Applications

  • All Applications where Severe Electrode Fouling Prevents the Use of Contacting Electrodes
  • All Applications where the 6 Decade Rangeability is Necessary for Accurate Process Control
  • All Ranges Except (Ultra) Pure Water Applications
  • All Slurry Applications where Conventional Systems Suffer from Plugging or Erosion

BSP Connection

  • G 3/4"

Cable Length

  • 16.4 to 65.6 feet (5 to 20 metres)

Cable Material

  • Vinyl

Electrical Connectors

  • R2 Screw-In Adapter

Environmental Protection

  • Weatherproof

Flange Material

  • 316 Stainless Steel - Process Adapter
  • PVC - Process Adapter
  • PVDF - Process Adapter

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# ANSI
  • 2" (DN 50) - JIS 10k
  • 2" (DN 50) - PN 16

Flow Rate

  • 5 m/sec, Max.

Gasket Material

  • Ethylene Propylene (EPR)

Measuring Range

  • 1 μS/cm to 1,999 ms/cm

Mounting

  • Bulk-Head Mounting

Nut & Bolt Material

  • 304 Stainless Steel - Retaining Nut

O-Ring Material

  • Ethylene Propylene Copolymer Rubber
  • FKM

Output Span - Maximum

  • 1,999 ms/cm

Output Span - Minimum

  • 100 μS/cm

Pressure Range

  • psi: 0 to 300 (MPa: 0 to 2, bar: 0 to 20) - Process Pressure

Process Temperature

  • -10° to 130° C (14° to 266° F) - for Continuous Exposure

RTD Type

  • Pt1000

Sensor, Probe Material

  • 304 Stainless Steel
  • PEEK

Wetted Materials

  • 316 Stainless Steel - Adapter
  • PVC - Adapter
  • PVDF - Adapter

  • All Applications Where Severe Electrode Fouling Prevents the Use of Contacting Electrodes
  • All Applications Where the 6 Decade Rangeability is Necessary for Accurate Process Control
  • All Ranges Except (Ultra) Pure Water Applications
  • All Slurry Applications Where Conventional Systems Suffer from Plugging or Erosion
