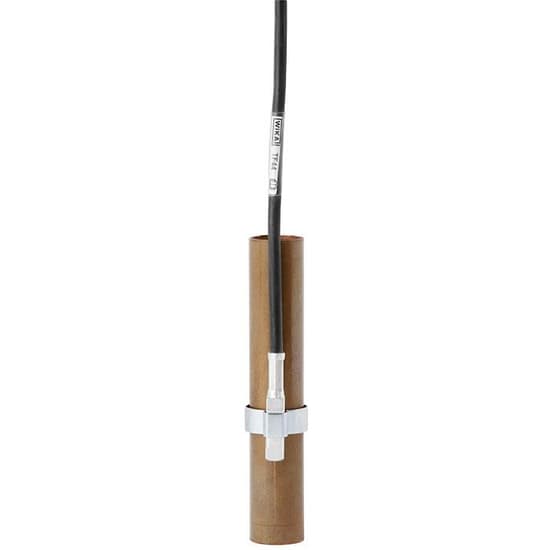

Strap-On Temperature Sensor - TF44
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.
Strap-On Temperature Sensor - TF44
Brand: WIKA Alexander Wiegand SE & Co. KGThe model TF44 strap-on temperature sensor is used for temperature measurement on pipe surfaces in the range -50 ... +200 °C (-58 ... +392 °F).
As a result of the indirect temperature measurement, on one hand any influence on the medium is avoided, and, on the other hand, the medium has no effect on the service life of the thermometer (e.g. high pressure loading, aggressive media).
Features- Measuring ranges from -50 ... +200 °C.
- The pipeline system remains sealed.
- The medium is not affected.
- Easy mounting with quick-mounting bracket.
- Good heat transfer through Aluminum sleeve.
Specifications
Material of Construction
- Probe Sleeve: Aluminum
- Insulation material of Connection Head: PVC, Silicone
Measuring Range
- -50 to 200° C
Measuring Element
- Pt1000, ClassB per DIN EN 60751
- Pt100, ClassB per DIN EN 60751
- NTC 10 k, B (25/85) = 3976
- NTC 5 k, B (25/85) = 3976
- NTC 2.7 k, B (25/85) = 3977
- KTY
- Heat pumps
- Combined heat and power plant
- Solar thermal systems
- Heating, ventilation, air-conditioning and refrigeration systems
- Machine building
