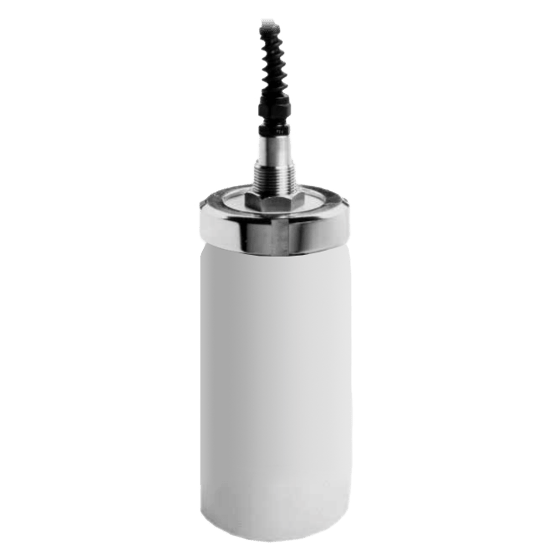

ISC40FFJ Flow-Through Holder
Brand: Yokogawa Electric Corporation
Images are representations only.
ISC40FFJ Flow-Through Holder
Brand: Yokogawa Electric CorporationThe ISC40J sensors are designed for use with the FLXA202/FLXA21 2-wire Analyzer, ISC202 2-wire transmitter and the ISC450G 4-wire converter.
This combination exceeds all expectations for conductivity measurement in terms of reliability, accuracy, rangeability and price performance.
This innovative inductive conductivity sensor provides highly accurate measurements over a wide measuring range (1 µS/cm to 1999 mS/cm) and process temperature range (-10° to 130° C, -10° to 105° C for ISC40SJ-TT) without changing the cell constant and conducting recalibration.
The erosion/abrasion resistant PEEK (Poly Ether Ether Ketone), which also features excellent chemical resistance in all solutions except Fluoric Acid or Oxidizing Concentrated Acids.
The PEEK sensor is provided with a rugged Stainless Steel mounting thread/nut/ gasket combination for ultimate flexibility in installation using bulk head installation technique.
There is also a wide range of holders and options available for reliable in-line or offline installation with double O-ring seals for long service life of the sensor.
The ISC40J have a large bore for optimal resistance to fouling processes and when properly installed, the flow will keep the sensor clean, to help avoid measuring errors.
Features- Inductive Conductivity technique for elimination of fouling and polarization errors.
- Wide bore sensors for long term stability.
- Installation flexibility due to wide range of holders and due to the use of universal bulkhead construction.
- A single sensor can maintain the high resolution and accuracy, and measure the conductivity in an extremely brood range.
- Minimum span: 100 μS/cm
- Maximum span: 1999 mS/cm
Specifications
Applications
- All Applications where Severe Electrode Fouling Prevents the Use of Contacting Electrodes
- All Applications where the 6 Decade Rangeability is Necessary for Accurate Process Control
- All Ranges Except (Ultra) Pure Water Applications
- All Slurry Applications where Conventional Systems Suffer from Plugging or Erosion
BSP Connection
- 1/2" BSPT Female
Enclosure, Body Material
- 316 Stainless Steel
- Polypropylene
- PVDF
Flange Material
- 304 Stainless Steel - Flange Adapter
Flange Size - 1” (DN 25)
- 1" (DN 25) - JIS 10K
- 1" (DN 25) - PN 10
Materials of Construction
- 304 Stainless Steel - Mounting Set
NPT Connection
- 1/2" NPT Female
Nut & Bolt Material
- Nut: 304 Stainless Steel
O-Ring Material
- Ethylene Propylene Copolymer Rubber
- FKM
Pressure Range
- psi: 14.5 (MPa: 0.1, bar: 1) - Max.
- psi: 145 (MPa: 1, bar: 10) - Max.
- psi: 87.02 (MPa: 0.6, bar: 6) - Max.
Process Temperature
- 100° C (212° F) - Max.
- 130° C (266° F) - Max.
- 150° C (302° F) - Max.
- All Applications Where Severe Electrode Fouling Prevents the Use of Contacting Electrodes
- All Applications Where the 6 Decade Rangeability is Necessary for Accurate Process Control
- All Ranges Except (Ultra) Pure Water Applications
- All Slurry Applications Where Conventional Systems Suffer from Plugging or Erosion
