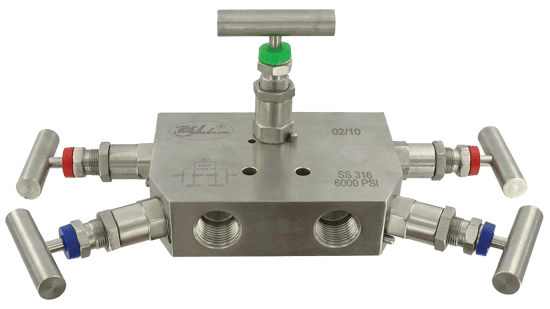

Series BBV-2 5-Valve Block and Bleed Manifold
Brand: Dwyer Instruments, LLC
Images are representations only.
Series BBV-2 5-Valve Block and Bleed Manifold
Brand: Dwyer Instruments, LLCSeries BBV-2 Block and Bleed Manifold is ideal for use over a broad range of industrial applications including oil refineries, nuclear power stations, petrochemical processing, and more.
The Series BBV-2 body is forged from 316 stainless steel bar stock and designed to withstand repeated open and close operations.
Suited to control oil, water, toxic fluids, chemicals, air, and steam; the 5-Valve Block and Bleed Manifold has (2) isolate, (1) equalizing, and (2) vent valves. Each valve stem is precision machined with hard seats to reduce operating torque.
Flanged models are designed to mount to an industrial differential pressure transmitter. The BBV-21F and BBV-22F come with four 7/16-20 UNF mounting bolts and two PTFE gaskets. The BBV-23F comes with eight 7/16-20 UNF mounting bolts and two PTFE gaskets.
Features- High Pressure Shut-off
- All stainless steel and PTFE wetted materials
- Precision machined hard seats to reduce operating torque
Specifications
Applications
- Industrial Gage or Transmitter Isolation
Enclosure, Body Material
- 316 Stainless Steel
Handle Assembly Material
- 304 Stainless Steel
- 316 Stainless Steel - Wetted Material
Media
- Compatible Gases
- Compatible Liquids
- Compatible Steam
NPT Inlet
- 1/2" NPT Female
- 1/4" NPT Female
NPT Outlet
- 1/2" NPT Female
- 1/4" NPT Female
Packing Material
- PTFE - Wetted Material
Pressure Range
- psi: 6,000 (kPa: 41,340, bar: 414)
Stem Material
- 316 Stainless Steel - Wetted Material
- PTFE - Wetted Material
Temperature Range
- 240° C (464° F)
Valves
- Five
