Suspended Float Switch - RLS-6000
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.

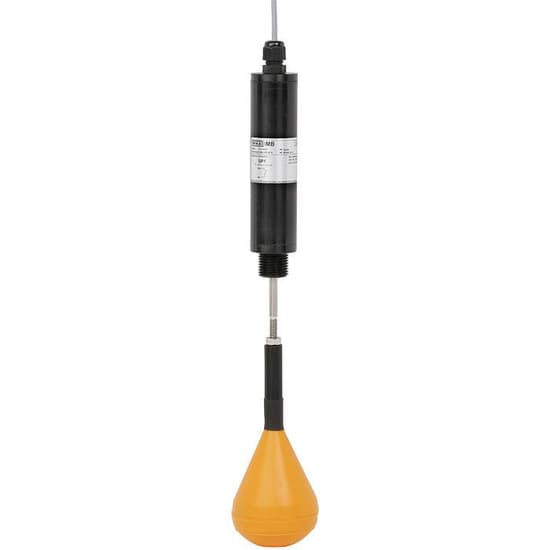

Suspended Float Switch - RLS-6000
Brand: WIKA Alexander Wiegand SE & Co. KGThe model RLS-6000 suspended float switch is used for monitoring strongly contaminated media, e.g. in wastewater lifting stations and pumping stations. The adjustable float rises and falls with the liquid level and moves the float rod depending on the level. When the float rod reaches the end position in the case, the magnet at the end of the float rod actuates the reed switch potted inside.
Features- Adjustable switch position through screw-adjustable float.
- Switch rod actuator, potential-free reed switch.
- Switch contact freely definable as normally closed, normally open or change-over contact.
- Also reliable in strongly contaminated media.
Specifications
Wetted Material
- Probe Tube: Stainless Steel 316Ti
- Float: Polypropylene (PP)
- Process Connection: PVC
Case Material
- PVC
Process Connection
- G 1/2"
Accuracy
- ± 3 mm (~0.12 in) switch point accuracy including hysteresis, Non-Repeatability
Measuring Range
- Sensor length: Freely selectable from 150 to 1,000 mm (6" to 39.2")
Temperature Range
- -10° to 60° C (14° to 140° F)
- Wastewater lifting stations
- Pumping stations
- Settling pits
- Particle-laden media
