Series PBLT2 & PBLTX Submersible Level Transmitter
Brand: Dwyer Instruments, LLC
Images are representations only.

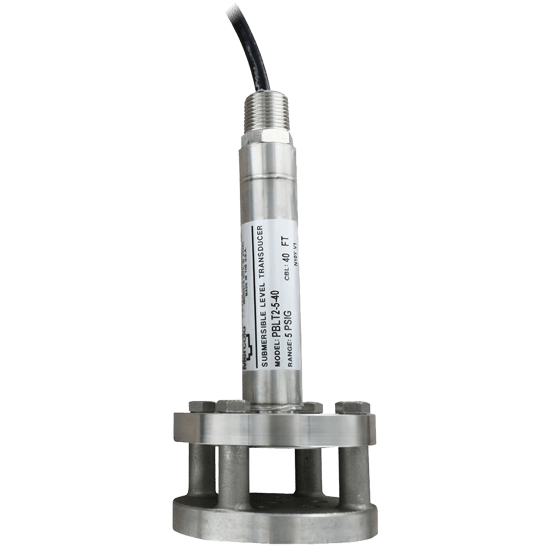

Series PBLT2 & PBLTX Submersible Level Transmitter
Brand: Dwyer Instruments, LLCPBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications.
Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing.
Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.
The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty).
The PBLTX is UL approved intrinsically safe for use in hazardous locations when used with proper barrier.
Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.
Features- Durable cage design with large diameter 316 Stainless Steel diaphragm seal that is non-clogging and damage resistant to floating solids
- Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
- Maintenance free filter eliminates particulate or water droplets from entering the transducer
- UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
- 270 lb tensile strength shielded and vented cable
- Excellent chemical compatibility
- NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation
Specifications
Accuracy
- ± 0.25 % of Full Scale (Includes Non-Linearity, Hysteresis & Non-Repeatability)
Approvals & Certifications
- CE
- cUL
Cable Length
- 16.40 ft (5 m)
- 32.81 ft (10 metres)
- 40 to 59.06 feet (12.2 to 18 m)
- 59.06 feet (18 m)
- 60 ft (18.3 m)
Cable Material
- ETFE
- Polyurethane
Compensated Temperature
- -18° to 82° C (0° to 180° F)
Electrical Connectors
- Pigtail with Cable
Electrical Protection
- Lightning & Surge Protection
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- Class I, Div. 1, Groups A, B, C, D
- Class II, Div. 1, Groups E, F, G
- Class III, Div. 1, Hazardous Location
- Intrinsically Safe
Loop Resistance
- 900 ohms
Media
- Compatible Liquids
NPT Connection
- 1/2" NPT Male
Output
- 4-20 mA DC, 2-Wire
Power Requirement
- 10 to 28 Vdc - PBLTX
- 13 to 30 Vdc - PBLT2
Pressure Range
- bar: 0.3 to 1.7
- kPa: 34.4 to 176
- psi: 5 to 25.58
Response Time
- 50 ms
Temperature Effect
- ± 0.02 % of Full Scale/°F
Temperature Range
- -18° to 93° C (0° to 200° F)
Vent Connection Style
- Tube Fitting
Wetted Materials
- 316 Stainless Steel
- 316L Stainless Steel
- Epoxy
- Wastewater
- Sludge Pits, Clarifiers, Digesters
- Alum Tanks
- Chemical Storage Tanks
- Oil Tanks
- Lime Slurry
- Sumps
- Reservoirs
