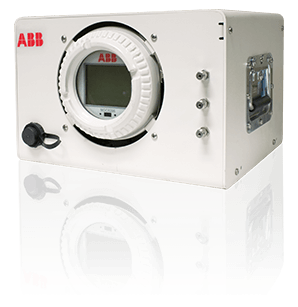

Portable NGC8206/NGC 8209 Natural Gas Chromatograph
Brand: ABB Group
Images are representations only.
Portable NGC8206/NGC 8209 Natural Gas Chromatograph
Brand: ABB GroupWhen gas volumes are too low to justify a continuous on-line solution.
When the overall cost and maintenance of gas samplers becomes too high.
When your business evolves to require real-time information and avoid the accounting inefficiencies inherent with waiting for time-consuming lab analysis.
These situations and many others demand the on-site analysis capabilities of the portable NGC8206.
The portable NGC8206 provides precise, reliable, on-site measurement of natural gas samples in a compact, affordable package that is easy to operate and maintain.
When the spot sample needs to be run, the unit is already powered up and stable, eliminating the wait at the meter site.
The NGC8206 and NGC8209 measure C6+ or C9+ (back flushed) peak.
Users may input the results of a comprehensive lab analysis that reflects the split or ratio of C6 through C10 or C9 through C12 components.
This ratio can be used in subsequent analyses and energy calculations.
Features- Portable GC interface allows user analysis customization
- Modular software – application based plug in software modules
- Manifold module (internal tubing now replaced by manifold)
- Analysis sections contain stream selection solenoids, temperature and pressure regulation, 32 bit digital detector electronics, replaceable column / valve modules and a low
- power 32 bit digital controller, using Windows CE® (internal to GC unit)
- Microsoft® Windows® based man-machine interface software (PCCU)
- USB MMI port connectivity
- Ethernet connectivity
- Lithium battery-backed RAM
- Two remote serial digital communications ports; one local port
- Comprehensive diagnostics and wizards available to users
- Audit-quality historical data; date and time stamped
- Operational fault/warn alarms available
- Detectors - constant temperature, glass encapsulated thermistor beads for rugged service and long life; will not burn out on loss of carrier
- 10 port valves have no moving metal parts in each analysis unit
- Low utility usage - low-power, low-carrier, no instrument air required
- On demand or scheduled automatic calibration and diagnostics
Specifications
Brand
Weatherpoof Construction
- No Classification
Media
- Helium
Analysis Time
- Approximately 5 minutes for Portable NGC8206, 6 minutes for Portable NGC8209, cycles may be scheduled by user
Repeatability
- Portable NGC8206: ± 0.25 BTU @ 1,000 BTU (± 0.025 %) over Temperature Range
- Portable NGC8206: ± 0.125 BTU @ 1,000 BTU (± 0.0125 %) @ ambient
- Portable NGC8209: ± 0.5 BTU @ 1,000 BTU (± 0.05 %) over Temperature Range
- Portable NGC8209: ± 0.25 BTU @ 1,000 BTU (± 0.025 %) @ ambient
Storage Temperature
- -22° to 140° F (-30° to 60° C)
Temperature Range
- Normal: 0° to 130° F (-18° to 55° C)
Humidity
- 95 % RH, Non-Condensing
Supply Voltage
- 110 Vac, 60 Hz
- Portable NGC8206: 12 Vdc (10.5-15 Vdc)
- 250 Vac, 50 Hz, 24 Vdc (16-28 Vdc)
Certifications & Approvals
- General purpose
Power Consumption
- Portable NGC8206: Start-Up: 45 W at 15 Vdc, less than 3 A @ 0° F (-18° C)
- Poratable NGC8206: Nominal: 7 W at 15 Vdc, 650 mA @ 0° F (-18° C)
- Portable NGC8209: Start-Up: 90 W at 15 Vdc, less than 6 A @ 0° F (-18° C)
- Poratable NGC8209: Nominal: 14 W at 15 Vdc, 1300 mA @ 0° F (-18° C)
Communication
- Optional USB Hub (Host and Client) and Ethernet Ports
- One USB MMI (RS-232 or USB)
- Two Serial Digital Ports, Software selectable for RS-232, RS-485, or RS-422
Protocols
- Totalflow / TCP
- Modbus / TCP Server
- Totalflow Remote / Local MMI
- Modbus / TCP Client
- Modbus ASCII or RTU (Modicon, WordSwap, or Danalyzer)
- DSFG (Portable NGC8206 only)
Dimensions
- Portable NGC8209: 19.05 cm x 52.07 cm x 39.37 cm
- Portable NGC8209: 7.5" high x 20.5" wide x 15.5" deep
- Portable NGC8206: 24.13 cm x 36.32 cm x 40.64 cm
- Portable NGC8206: 9.5" high x 14.3" wide x 16" deep
Weight
- Portable NGC8206: Approximately 38 lb (17 kg)
- Portable NGC8209: Approximately 34 lb (15 kg)
