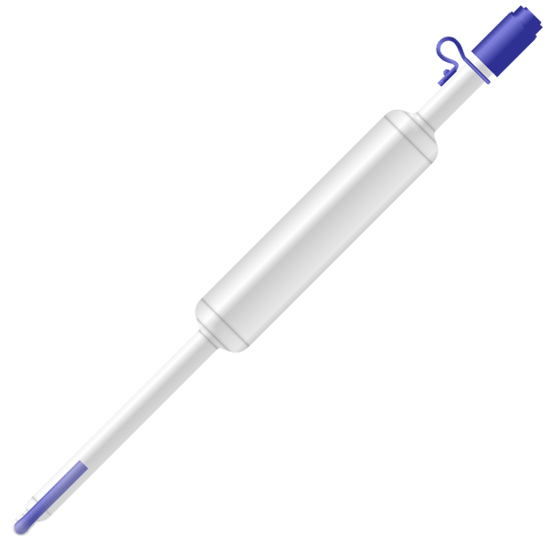

PH4FE pH Sensor for Fermentation
Brand: Yokogawa Electric Corporation
Images are representations only.
PH4FE pH Sensor for Fermentation
Brand: Yokogawa Electric CorporationYokogawa’s line of pH sensors has been strengthened by the inclusion of the polymer electrolyte pH sensor PH4P/PH4PT, HF-resistant pH sensor PH4F/PH4FT, pH sensor for chemical process PH4C /PH4CT, and pH sensor for fermentation PH4FE.
Like the pH sensor series, the ORP sensor series is also offered as a complete lineup with the polymer electrolyte ORP sensor OR4P, ORP sensors for chemical process OR4C in addition to standard Ryton pH/ORP sensors.
Features- Inner solution can be refilled.
- There are 2 pores of ceramic liquid junctions.
- The reference electrode is composed of silver ion trap which inhibits the generation of sulfide around the ceramic liquid junction.
Specifications
Applications
- Fermentation (Sterilization Process)
- Solutions Containing Organic Solvents
Cable Length
- 9.84 to 65.61 ft (3 to 20 metres)
Diameter
- Glass Tube Diameter: 0.47" (12 mm)
Diaphragm Material
- Ceramic Junction x 3
Electrical Connectors
- Fork Terminal
- Pin Terminal
Enclosure, Body Material
- Glass
Insertion 'U' Length
- Shaft Length: 4.7" (120 mm)
- Shaft Length: 7.8" (200 mm)
- Shaft Length: 9.8" (250 mm)
Measuring Range
- pH: 0 to 12
Pressure Range
- Measuring Pressure: Atmospheric Pressure to psi: 87.02 (kPa: 600, bar: 6)
Temperature Range
- Cable Measuring Temperature: -20° to 70° C (-4° to 158° F)
- Measuring Temperature: 0° to 105° C (32° to 221° F) (Sterilization Temperature: Max.
