214C RTD Temperature Sensor

Brand: Rosemount

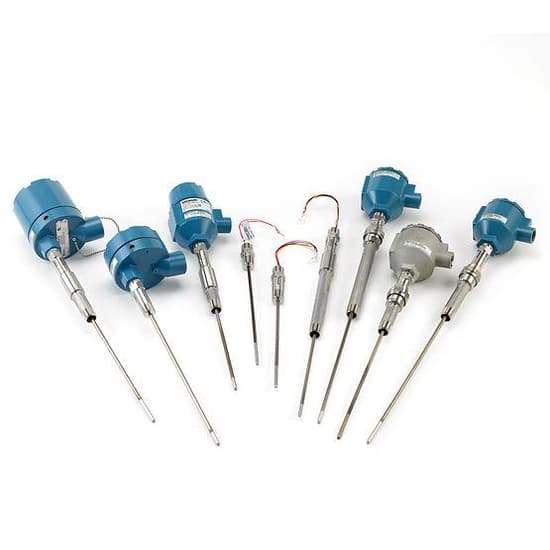

Rosemount RTD Temperature Sensor, 214C
Rosemount RTD Temperature Sensor, 214C Rosemount RTD Temperature Sensor, 214C Rosemount RTD Temperature Sensor, 214C
Images are representations only.

214C RTD Temperature Sensor

Brand: Rosemount
Request Information
Favorite
The Rosemount 214C RTD Temperature Sensor is a Pt-100, single or dual element resistant temperature detector (RTD) that covers a wide range of temperatures, from -321° to 1,112° F (-196° to 600° C).

An exceptional solution, this sensor has a thin-film and wire-wound design for application flexibility.

With many calibration options, including Class A or B sensor accuracy, this sensor also offers Callendar-Van Dusen constants for transmitter-sensor matching to provide the highest level of accuracy.
Features
  • Single or dual element Pt-100 RTD with thin-film or wire-wound designs meets various application requirements
  • Thin film sensor engineered to withstand high vibration industrial applications
  • Wire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperatures
  • Covers a wide range of temperatures from -321° to 1,112° F (-196° to 600° C) for application flexibility
  • Callendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracy
  • Optional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standards
  • Adaptable design with a variety of enclosure and connection head options meet varying application demands
  • Includes spring-loaded or compact spring-loaded mounting styles for adaptability
  • North American approvals meet hazardous location requirements

Specifications

Brand

Approvals & Certifications

  • ATEX
  • IECEx

Electrical - Free Leads

  • 24 AWG Wire, FEP Insulated

Materials of Construction

  • 316 Stainless Steel Component & Wire on Tag
  • Sheath Material: 321 Stainless Steel

Resistance

  • Insulation Resistance: 1,000 MΩ Min. Insulation Resistance when Measured at 500 Vdc at Room Temperature

Response Time

  • 0.8 second, Max.

Sensor, Probe Connection

  • Single or Dual, 3-Wire
  • Single, 4-Wire

Stability

  • ± 0.15° C (0.059) - Max.

Temperature Range

  • -196° to 600° C (-320.8° to 1,112° F)
