2867 pH / Redox Electrode System
Brand: ABB Group
Images are representations only.

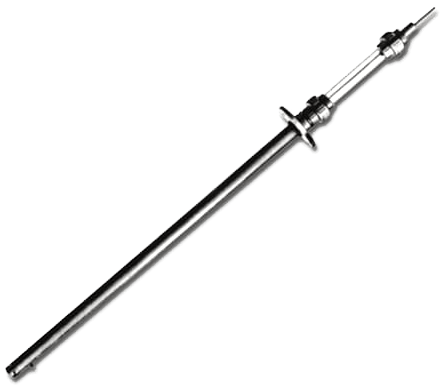

2867 pH / Redox Electrode System
Brand: ABB GroupThe pH / redox electrode system 2867 with industrial dip electrode is designed for pH and redox measurement in channels and open tanks.
It is particularly suitable for use in effluent treatment applications where automatic temperature compensation is not required.
The 2867 utilizes a specially designed combination electrode, providing reliable measurement in a wide variety of samples.
Features- Simple, robust design in three dip lengths
- Positive salt-bridge flow from integral reservoir
- Easily-replaced, reliable combination electrode
- Built-in sight glass for salt-bridge reservoir
- Simple installation on wall or tank
Specifications
Brand
Material of Construction
- ABS (Acrylonitrile Butadiene Styrene) with perspex sight Tube
Sample Temperature
- 0° to 70° C (32° to 158° F)
Mounting
- Wall bracket or flange Supplied, located by O-Rings
Stem Length
- Nominal 0.46 to 1.80 m (18 in to 6 ft)
Lead Length
- 6 m (19.5 ft)
pH Range
- 0 to 14
Temperature Range
- -5° to 70° C (23° to 158° F)
Electrolyte
- 3.8M KCl
