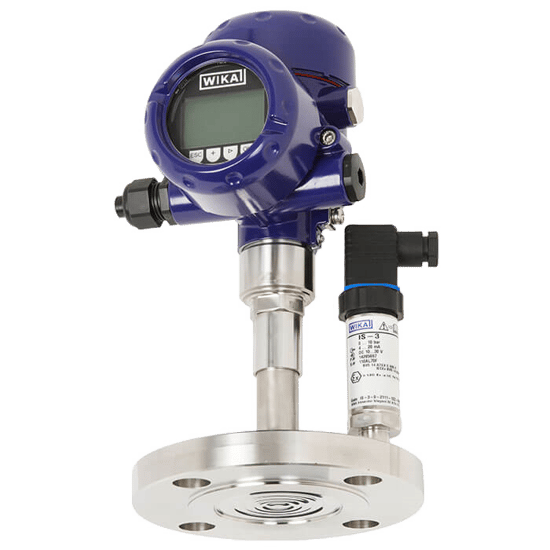

Diaphragm Monitoring System - NewDMS27
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.
Diaphragm Monitoring System - NewDMS27
Brand: WIKA Alexander Wiegand SE & Co. KGFor the chemical and petrochemical industries.
Features- Double-diaphragm system to ensure the separation of the process and the pressure measuring instrument.
- Process connection with flange to provide for direct threaded connection.
- All-welded design with flush diaphragm.
- System entirely from Hastelloy®.
- Patent applied for in various countries, e.g. DE 19 94 98 31.
Specifications
Measurement Range
- -1 to 40 bar (-30 inHg to 600 psi)
Ambient Temperature
- 10° to 40° C (50° to 104° F)
Storage Temperature
- 10° to 60° C (50° to 140° F)
Medium Temperature
- -10° to 120° C (-50° to 248° F)
Environmental Protection
- IP65
- IP66
- IP67
Material of Construction
- Case: Double chamber Case, Aluminium die-Casting AlSi10Mg
- Sensor: 316L Stainless Steel/1.4404
- Case: Stainless Steel
- Wetted: Hastelloy
Output Signal
- 4-20 mA
- Chemical/petrochemical industry, oil/gas industries
- For applications with hydrofluoric acid content
- For Ex applications
- For aggressive and critical media
- Pressure/vacuum measurement on pipelines or vessels
