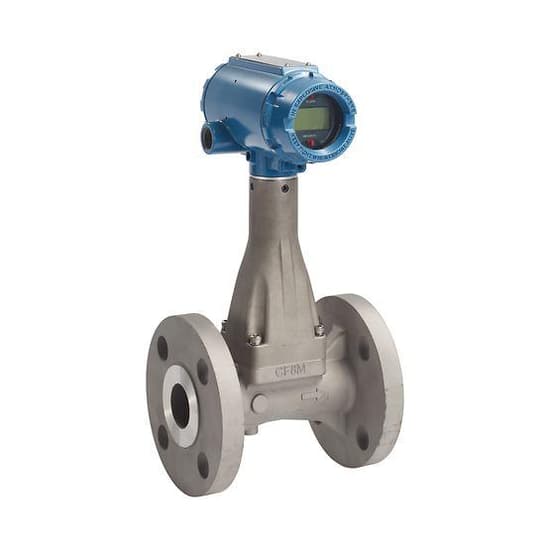

8600 Utility Vortex Flowmeter
Brand: Rosemount
Images are representations only.
8600 Utility Vortex Flowmeter
Brand: RosemountThe Rosemount 8600 Utility Vortex flow meter is optimized for general-purpose flow metering and utility applications including clean fluids and steam flow. The 8600 Utility Vortex meter offers enhanced reliability and simplified maintenance with superior vibration immunity without any moving parts.
Installation is easy with no impulse lines or zeroing required and internal verification of both the electronics and sensor add enhanced process insight.
Features- Ensure reliability and cut costs with no moving parts to repair or maintain
- Eliminate impulse lines and plugging issues with inline technology
- Simplify installation with no impulse lines or field calibration or zeroing required
- Cover a broad span of flow rates with wide rangeability
- Electronics verification enables simplified troubleshooting
- Perform easy maintenance with replaceable sensors
- Remote mount electronics offered for easy access
Specifications
Brand
Accuracy
- ± 0.75 % of Volumetric Rate for Liquids
- ± 1 % of Volumetric Rate for Gas & Steam
- ± 2 % of Volumetric Rate for Mass Flow on Steam
Approvals & Certifications
- ATEX
- CSA
- EAC
- FM
- IECEx
- NEPSI
Enclosure, Body Material
- Low-Copper Aluminum
Environmental Protection
- IP66
- Typical 4X
Operating Temperature
- -50° to 250° C (-58° to 482° F)
Output
- 4-20 mA with HART or 4-20 mA with HART & Scalable Pulse
Process Connection Style
- Flange: ASME B16.5 (ANSI): Class 150, 300, EN 1092-1 PN 16, 40 Typical B1
Size
- Line Size: 1" to 8" (25 to 200 mm)
Turndown
- 12 / 31 / 1899 6:01
Wetted Materials
- Stainless Steel - CF3M & CF8M
Documentation
Product Manuals
Certificates & Approvals
- Approval Document: Rosemount 8600 Vortex Flow Meter pdf 3.7 MB
- ATEX Certificate: Ex db and Ex ia Rosemount 8600D Vortex Flow Meter pdf 2.4 MB
- ATEX Certificate: Ex ia Rosemount 8600D Vortex Flow Meter pdf 3.1 MB
- ATEX Certificate: Ex nA ic Rosemount 8600D Vortex Flow Meter pdf 3.1 MB
- ATEX Certificate: Ex tb Rosemount 8600D Vortex Flow Meter pdf 2.9 MB
- CSA US and Canada Certificate: Rosemount 8800D and 8600D Vortex Flow Meters pdf 275 KB
- Declaration of Conformity: Vortex Flow Meters - 8600D Series pdf 1.7 MB
- EAC Certificate: Ex d, Ex ia, Ex nA ic Rosemount 8800D and 8600D Vortex Flow Meters pdf 1.4 MB
- IECEx Certificate: Ex db and Ex ia Rosemount 8600D Vortex Flow Meter pdf 724 KB
- IECEx Certificate: Ex ia Rosemount 8600D Vortex Flow Meter pdf 2.2 MB
- IECEx Certificate: Ex nA ic Rosemount 8600D Vortex Flow Meter pdf 2.2 MB
- IECEx Certificate: Ex tb Rosemount 8600D Vortex Flow Meter pdf 2.2 MB
- Ingress Protection (IPxx) - Attestation of Conformity: Rosemount Vortex and Magnetic Flow Meters pdf 1.6 MB
- Korea Certificate: EMC Rosemount 8800D and 8600D Vortex Flow Meters pdf 692 KB
- Korea Certificate: Ex d [ia] Rosemount 8600D Vortex Flow Meter pdf 331 KB
- NEPSI Certificate: Ex d and Ex ia Rosemount 8600D Vortex Flow Meter pdf 1.3 MB
- NEPSI Certificate: Ex ia Rosemount 8600D Vortex Flow Meter pdf 1.2 MB
- NEPSI Certificate: Ex nA ic Rosemount 8600D Vortex Flow Meter pdf 1.2 MB
- NEPSI Certificate: Ex tD A21 Rosemount 8600D Vortex Flow Meter pdf 1.2 MB
- RoHS Compliance: Rosemount Vortex and Magnetic Flowmeter Compliance with EU RoHS II and RoHS III Restriction of Hazardous Substances pdf 44 KB
