141 Insertion Conductivity Sensor
Brand: Rosemount
Images are representations only.

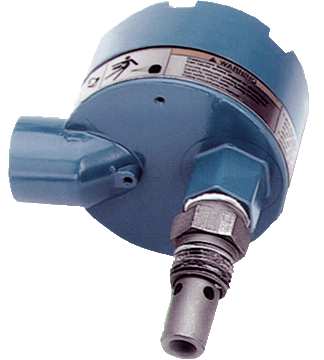

141 Insertion Conductivity Sensor
Brand: RosemountThe Rosemount 141 contacting conductivity sensors are ideal for use in clean, low conductivity applications.
141 sensors feature a 3/4 inch MPT process connection for installation directly into process piping, vessels, or flow through tees.
The sensors are available with a high temperature option for use up to 200° C.
Features- Selectable cell constants of 0.2/cm and 1.0/cm for moderately high conductivity applications
- High temperature options for sensor use between 100° to 200° C
- Ease of field wiring thanks to an integral cast aluminum junction box
Specifications
Brand
Conductivity
- Cell Constant: 0.1/cm
- Cell Constant: 0.2/cm
Enclosure, Body Material
- 316 Stainless Steel
Materials of Construction
- Electrode: 316 Stainless Steel
- Insulator: PEEK
- Junction Box: Aluminum
Maximum System Pressure
- psig: 250 (kPa: 1,725, bar: 17.25)
NPT Connection
- 3/4" NPT Male
O-Ring Material
- Viton
Temperature Range
- With Optional Integral Junction Box: 0° to 200° C (32° to 392° F)
