ASCO Numatics 441 Series Cylinders
Brand: ASCO
Images are representations only.

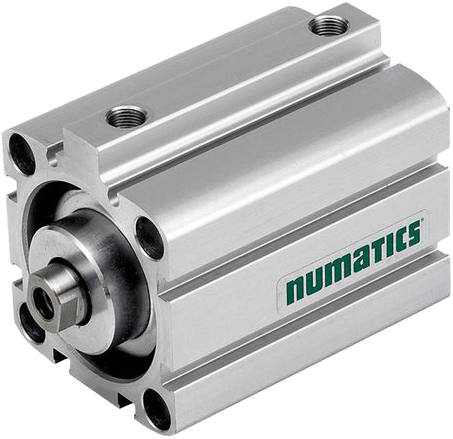

ASCO Numatics 441 Series Cylinders
Brand: ASCOThe ASCO Numatics 441 Series is a line of robust, compact short-stroke pneumatic cylinders. The devices have a durable single/double rod and anti-rotation device for extended service life. The cylinders are suitable for automotive, case packing, dust collector system, packaging, press room, and metal stamping applications.
Features- Handles lubricated and unlubricated air
- Ambient temperature range -20° C to 70° C
- Wide range of options
- Equipped for magnetic position detectors
Specifications
Brand
Body Material
- Light Alloy
Bore
- 8 mm, 10 mm, 20 mm, 25 mm, 32 mm, 50 mm, 63 mm, 80 mm, 100 mm, 12 mm, 16 mm, 40 mm
Function
- Through Rod, Single-Acting, Non Rotation, Double-Acting, Single Rod
Operating Environment
- Hazardous, Outdoor, Indoor
Standards & Regulations
- ATEX Zone 1-21, ATEX Zone 2-22
Stroke
- 100 mm, Max.
