Diaphragm Monitoring System - NewDMS34
Brand: WIKA Alexander Wiegand SE & Co. KG
Images are representations only.

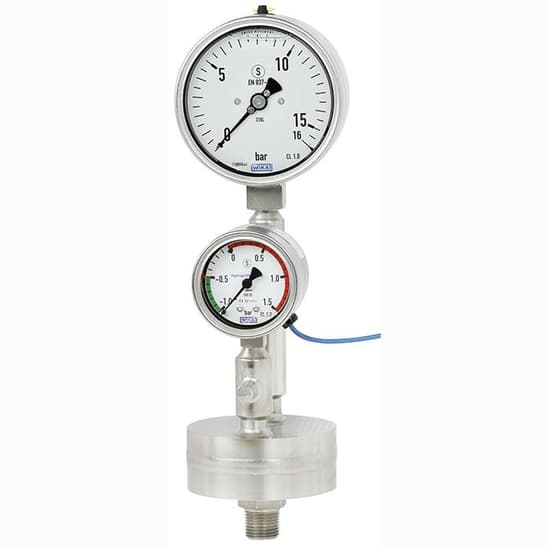

Diaphragm Monitoring System - NewDMS34
Brand: WIKA Alexander Wiegand SE & Co. KGThe WIKA combination of diaphragm seal, pressure measuring instrument and monitoring element is ideally suited for the harshest measuring tasks.
The system can withstand aggressive, contaminated or hot media and ensures a secure connection between the medium and the diaphragm monitoring system.
The model DMS34 is a patented WIKA development, see e.g. patent DE 19949831, and is subject to further pending patents, e.g. US 2018180505, DE 102016015447, CN 108240885.
Features- Double-diaphragm system to ensure the separation of the process and the pressure measuring instrument.
- Process connection with thread to provide for direct threaded connection.
- All-welded design with internal diaphragm.
- System entirely from Monel.
- Patent applied for in various countries, e.g. DE 19 94 98 31.
Specifications
Scale Range
- -1 to 40 bar (-30 inHg to 600 psi)
Ambient Temperature
- 10° to 40° C (50° to 104° F)
Storage Temperature
- 10° to 60° C (50° to 140° F)
Medium Temperature
- 10° to 150° C (50° to 302° F)
Environmental Protection
- IP65
Wetted Materials
- Monel 400 2.4360, UNS 04400
Fill Fluid
- KN 21 halocarbon
Nominal Size
- 100 mm (4")
Case Material
- 316L Stainless Steel
Dial Material
- Aluminium, White, Black Lettering
Window Material
- Laminated Safety Glass
- Chemical / Petrochemical Industry, Oil & Gas Industries
- For Applications with Hydrofluoric Acid Content
- For Aggressive and Critical Media
- Pressure / Vacuum Measurement on Pipelines or Vessels
