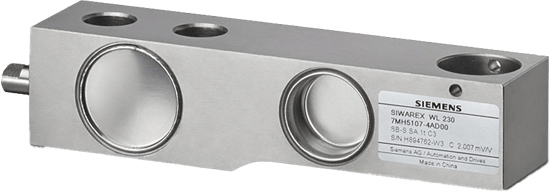

SIWAREX WL230 SB-S SA Shear Beam Load Cell
Brand: Siemens AG
Images are representations only.
SIWAREX WL230 SB-S SA Shear Beam Load Cell
Brand: Siemens AGSIWAREX WL230 SB-S SA is an extremely compact shear beam load cell designed for crowded conditions.
Mounted with the compatible SIWAREX mounting unit the installation height up to 2 t is only 76 mm (3") and for 5 t only 111 mm (4.4").
With a resolution of 15,000, the SIWAREX WL230 SB-S SA is ideal for use in large-sized platform scales, batching systems, sacking systems or bin scales.
Features- Extremely compact design
- Easy and quick installation with SIWAREX mounting units
Specifications
Brand
Rated Load
- 500, 1,000, 2,000, 5,000 kg
Accuracy Class
- C3 According to OIML R60
Resolution
- 10,000 to 15,000
Environmental Protection
- IP68
Sensor Material (DIN)
- Stainless Steel
Operating Temperature
- -35° to 65° C (-31° to 149° F)
Storage Temperature
- -35° to 65° C (-31° to 149° F)
Rated Temperature Tange
- -10° to 40° C (14° to 104° F)
- Hopper Scales
- Belt Scales
- Overhead Rail Scales
- Platform Scales
