VJCE-01A VJ Mounting Base
Brand: Yokogawa Electric Corporation
Images are representations only.

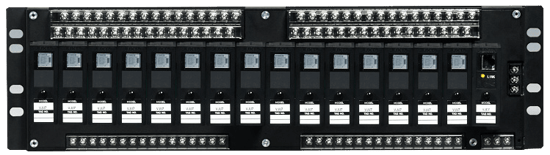

VJCE-01A VJ Mounting Base
Brand: Yokogawa Electric CorporationThe VJCE is a horizontally installed, side-by-side multiple mounting base that complies with the standard rack-mounting dimensions specified by the JIS/EIA standards.
The VJCE base can accommodate up to 16 signal conditioners in the JUXTA VJ series.
Features- Different Signal Conditioner Models in the VJ Series Can be Mixed and Housed in the Same Base
- The VJET Ethernet/RS-485 Converter Can be Mounted
- Multi-drop Connection is Used for Output-2
Specifications
Approvals & Certifications
- CSA 1010 Category - CAT II (IEC 1010-1)
Communication
- RS-485 Communication Terminal
Electrical Connectors
- M3.5 Screw Terminal
Enclosure Finish
- Black
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity
Insulation Resistance
- 100 MΩ min. at 500 Vdc
Mounting
- Four M5 Size Screws
- Rack-Mounted
- Wall Mounted
Mounting Position
- Horizontal
Operating Temperature
- 0° to 50° C (32° to 122° F)
Supply Voltage
- 1,000 Vac for One Minute between Output-1 & Output-2 - Withstanding Voltage
- 12-48 Vdc
- 2,000 Vac for One Minute between Input, (Output-1, Output-2), Power Supply Terminals & Grounding Terminals Mutually - Withstanding Voltage
- 24 Vdc ± 10 %
- 85-264 Vac/dc (47 to 63 Hz)
