VJA1 Isolated Single & Dual Output Distributor
Brand: Yokogawa Electric Corporation
Images are representations only.

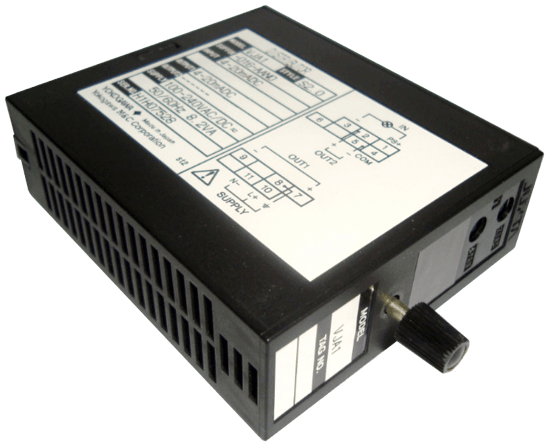

VJA1 Isolated Single & Dual Output Distributor
Brand: Yokogawa Electric CorporationThe VJA1 is a compact, plug-in type distributor that is used in combination with a two-wire type transmitter to convert the transmitter’s 4-20 mA DC signals into isolated DC current or DC voltage signals.
Features- HART communication: VJA1/H (option code /H) Bi-directional relay of HART communication signals is possible while the field devices and the higher-level device are isolated from each other.
- Supports BARD-800.
Specifications
Accuracy
- ± 0.1 % of Span
Approvals & Certifications
- CE
- EMC EN 61326
Consumption
- 3.1 W at 110 Vdc - Power Consumption
- 3.2 W at 24 Vdc - Power Consumption
- 6.1 VA at 100 Vac - Power Consumption
- 8.3 VA at 200 Vac - Power Consumption
Current
- 1-24 mA DC - Span
- 25-35 mA - Current Limiter
Electrical Connectors
- M3 Screw Terminal
Electrical Contacts
- Normally Closed - Output-2
Enclosure, Body Material
- Modified Polyphenylene Oxide
Environmental Protection
- Intrinsically Safe
Humidity
- 5 to 90 % RH, Non-Condensing - Operating Humidity
Input
- 40 mA DC - Max.
Input Signal
- 4-20 mA DC Signal from 2-Wire Typical Transmitter
Insulation Resistance
- 100 MΩ min. at 500 Vdc between Input, Output-1, Output-2, Power Supply & Grounding Terminals Mutually
Mounting
- Base Mounting (VJCE) - VJ Mounting
- DIN Rail Mounting
- Wall Mounted
Operating Temperature
- 0° to 50° C (32° to 122° F)
Operating Voltages
- 12-36 V
- 85-264 V
Output
- 0-100 mVdc
- 0-24 mA DC
- -10 to 10 Vdc
- 1-5 Vdc
- 4-20 mA DC
Power Supply
- 100-240 Vac/dc (-15 %, 10 %) 50/60 Hz (Operating Range: 85-264 V) - Supply Input & Rated Voltage Range
- 15-30 Vdc (± 20 %) (Operating Range: 12-36 V) - Supply Input & Rated Voltage Range
- 25.25 ± 0.25 Vdc (Provided with a Current Limiter to Keep the Current between 25-35 mA) - Transmitter Power Supply
Power Supply Effect
- Up to ± 0.1 % of Span for the Regulation within Allowable Range of Each Supply Voltage Range - Effects of Power Line Regulation
Resistance
- 250 ohms - Input Resistance
- 350 to 250,000 ohms - Allowable Load Resistance
Response Time
- 150 ms, 63 % Response (10 to 90 %)
Span & Zero Adjustments
- -5 to 5 % - Zero Adjustment
- 95 to 105 % - Span Adjustment
Supply Voltage
- 1,000 Vac for One Minute between Output-1 & Output-2 Terminals - Withstanding Voltage
- 10 mV-20 V - Span (DC)
- 2,000 Vac for One Minute between Input, Output-1 & Output-2, Power Supply & Grounding Terminals - Withstanding Voltage
Temperature Effect
- Up to ± 0.15 % of Span Per 10° C (18° F) - Effects of Ambient Temperature Variations
Version / Leadwires
- 2-Wire Typical Transmitter
Zero Offset
- 0 to 200 % - Zero Elevation for Current Signal
- -100 to 200 % - Zero Elevation for Voltage Signal
