3051CFA Annubar Flowmeter

Brand: Rosemount

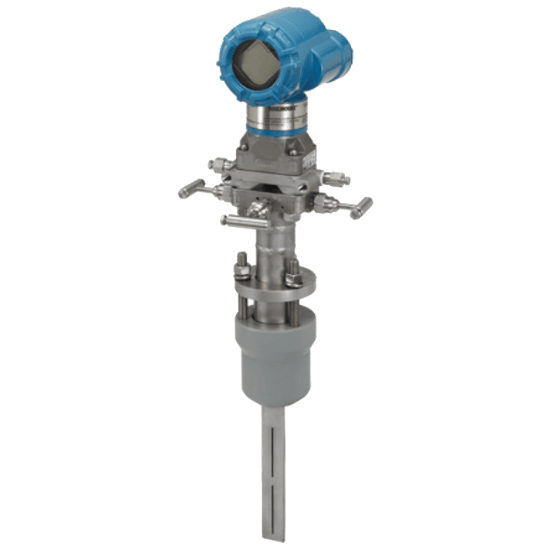

Rosemount Annubar Flowmeter, 3051CFA
Rosemount Annubar Flowmeter, 3051CFA
Images are representations only.

3051CFA Annubar Flowmeter

Brand: Rosemount
Request Information Favorite
An industry-leading flow measurement solution, the Rosemount 3051CFA Annubar Flow Meter is customized with a patented T-shaped, averaging pitot tube that features reliable accuracy over a wide flow range.

This patented sensor design maintains a small profile in the pipe for reduced permanent pressure loss and is capable of flow and pressure measurements via a single pipe penetration.

This flow meter is also leak-tested and calibrated to reduce leak points for increased process control.
Features
  • Patented T-shape Annubar Creates a Fixed Separation Point for DP Signal Improvement Over a Wider Flow Rate
  • Complete Flow Assemblies are Leak-tested and Calibrated to Reduce Leak Points Up to 70% and Simplify Installation
  • 10-Year Stability and 8:1 Flow Turndown / 150:1 Rangedown Produce Reliable Measurements and Application Flexibility
  • Sensor Stagnation Zone Positioned to Reduce Noise, Measurement Inaccuracies and Keeps Particulates From Clogging
  • Local Operator Interface Offers Easy-to-Use Menus and Built-in Configuration Buttons for Streamlined Commissioning
  • Loop Integrity Diagnostics Detect Electrical Loop Issues for Reduced Downtime
  • SIL 2/3 Certified to IEC 61508 - via 3rd Party, and Prior - Use Certificate of FMEDA Data for Safety Installations

Specifications

Brand

Accuracy

  • ± 1.80 % of Flow Rate at 8: 1 Flow Turndown

Alarm

  • Custom Alarm & Saturation Signal Levels
  • NAMUR Alarm & Saturation Signal Levels

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Applications

  • Marine & Offshore Applications

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IEC Ex
  • INMETRO

Configuration

  • 4-20 mA HART
  • FOUNDATION Fieldbus Protocols
  • Low-Power, 1-5 Vdc with Digital Signal based on HART Protocol
  • PROFIBUS PA Protocol
  • Wireless Protocols

Damping Adjustment

  • User Configurable from 0 to 60 seconds

Diaphragm Material

  • Alloy 400 or Monel
  • Gold-Plated 316L Stainless Steel
  • Gold-Plated Alloy 400
  • Hastelloy C-276
  • Tantalum

Display

  • LCD Display
  • LCD Display with Local Operator Interface
  • None

Drain, Vent Valves & Plug

  • 316 Stainless Steel
  • Hastelloy C-276
  • Monel 400

Electrical Connectors

  • 1/2" NPT
  • G 1/2"
  • M20 x 1.5

Electromagnetic Interference Effect

  • Meets All Relevant Requirements of EN 61326 & NAMUR NE-21

Enclosure Finish

  • Polyurethane Paint

Enclosure, Body Material

  • Cast Stainless Steel
  • Low-Copper Aluminum

Environmental Protection

  • IP65
  • IP66
  • IP68
  • NEMA 4X / IP65, 66, 68

Fill Material

  • Inert Oil Fill
  • Silicone

Flange Material

  • 316 Stainless Steel
  • Alloy 400 or Monel
  • Hastelloy C-276
  • Plated Carbon Steel

Flange Size - 10” (DN 250)

  • 10" (DN 250) - 150#
  • 10" (DN 250) - 1500#
  • 10" (DN 250) - 2500#
  • 10" (DN 250) - 300#
  • 10" (DN 250) - 600#
  • 10" (DN 250) - 900#
  • 10" (DN 250) - PN 100
  • 10" (DN 250) - PN 16
  • 10" (DN 250) - PN 40

Flange Size - 12” (DN 300)

  • 12" (DN 300) - 150#
  • 12" (DN 300) - 1500#
  • 12" (DN 300) - 2500#
  • 12" (DN 300) - 300#
  • 12" (DN 300) - 600#
  • 12" (DN 300) - 900#
  • 12" (DN 300) - PN 100
  • 12" (DN 300) - PN 16
  • 12" (DN 300) - PN 40

Flange Size - 14” (DN 350)

  • 14" (DN 330) - 1500#
  • 14" (DN 350) - 150#
  • 14" (DN 350) - 2500#
  • 14" (DN 350) - 300#
  • 14" (DN 350) - 600#
  • 14" (DN 350) - 900#
  • 14" (DN 350) - PN 100
  • 14" (DN 350) - PN 16
  • 14" (DN 350) - PN 40

Flange Size - 16” (DN 400)

  • 16" (DN 400) - 150#
  • 16" (DN 400) - 1500#
  • 16" (DN 400) - 2500#
  • 16" (DN 400) - 300#
  • 16" (DN 400) - 600#
  • 16" (DN 400) - 900#
  • 16" (DN 400) - PN 100
  • 16" (DN 400) - PN 16
  • 16" (DN 400) - PN 40

Flange Size - 18” (DN 450)

  • 18" (DN 450) - 150#
  • 18" (DN 450) - 1500#
  • 18" (DN 450) - 2500#
  • 18" (DN 450) - 300#
  • 18" (DN 450) - 600#
  • 18" (DN 450) - 900#
  • 18" (DN 450) - PN 100
  • 18" (DN 450) - PN 16
  • 18" (DN 450) - PN 40

Flange Size - 2-1/2” (DN 65)

  • 2-1/2" (DN 65) - 150#
  • 2-1/2" (DN 65) - 1500#
  • 2-1/2" (DN 65) - 2500#
  • 2-1/2" (DN 65) - 300#
  • 2-1/2" (DN 65) - 600#
  • 2-1/2" (DN 65) - 900#
  • 2-1/2" (DN 65) - PN 100
  • 2-1/2" (DN 65) - PN 16
  • 2-1/2" (DN 65) - PN 40

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150#
  • 2" (DN 50) - 1500#
  • 2" (DN 50) - 2500#
  • 2" (DN 50) - 300#
  • 2" (DN 50) - 600#
  • 2" (DN 50) - 900#
  • 2" (DN 50) - PN 100
  • 2" (DN 50) - PN 16
  • 2" (DN 50) - PN 40

Flange Size - 20” (DN 500)

  • 20" (DN 500) - 150#
  • 20" (DN 500) - 1500#
  • 20" (DN 500) - 2500#
  • 20" (DN 500) - 300#
  • 20" (DN 500) - 600#
  • 20" (DN 500) - 900#
  • 20" (DN 500) - PN 100
  • 20" (DN 500) - PN 16
  • 20" (DN 500) - PN 40

Flange Size - 24” (DN 600)

  • 24" (DN 600) - 150#
  • 24" (DN 600) - 1500#
  • 24" (DN 600) - 2500#
  • 24" (DN 600) - 300#
  • 24" (DN 600) - 600#
  • 24" (DN 600) - 900#
  • 24" (DN 600) - PN 100
  • 24" (DN 600) - PN 16

Flange Size - 3-1/2” (DN 90)

  • 3-1/2" (DN 30) - 1500#
  • 3-1/2" (DN 30) - 2500#
  • 3-1/2" (DN 30) - 300#
  • 3-1/2" (DN 30) - 600#
  • 3-1/2" (DN 30) - 900#
  • 3-1/2" (DN 30) - PN 100
  • 3-1/2" (DN 30) - PN 16
  • 3-1/2" (DN 30) - PN 40
  • 3-1/2" (DN 90) - 150#

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150#
  • 3" (DN 80) - 1500#
  • 3" (DN 80) - 2500#
  • 3" (DN 80) - 300#
  • 3" (DN 80) - 600#
  • 3" (DN 80) - 900#
  • 3" (DN 80) - PN 100
  • 3" (DN 80) - PN 16
  • 3" (DN 80) - PN 40

Flange Size - 30” (DN 750)

  • 30" (DN 750) - 150#
  • 30" (DN 750) - 1500#
  • 30" (DN 750) - 2500#
  • 30" (DN 750) - 300#
  • 30" (DN 750) - 600#
  • 30" (DN 750) - 900#
  • 30" (DN 750) - PN 100
  • 30" (DN 750) - PN 40
  • 30" (DN 750) - PN 16

Flange Size - 36” (DN 900)

  • 36" (DN 900) - 150#
  • 36" (DN 900) - 1500#
  • 36" (DN 900) - 2500#
  • 36" (DN 900) - 300#
  • 36" (DN 900) - 600#
  • 36" (DN 900) - 900#
  • 36" (DN 900) - PN 100
  • 36" (DN 900) - PN 16
  • 36" (DN 900) - PN 40

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150#
  • 4" (DN 100) - 1500#
  • 4" (DN 100) - 2500#
  • 4" (DN 100) - 300#
  • 4" (DN 100) - 600#
  • 4" (DN 100) - 900#
  • 4" (DN 100) - PN 100
  • 4" (DN 100) - PN 16
  • 4" (DN 100) - PN 40

Flange Size - 42” (DN 1050)

  • 42" (DN 1050) - 150#
  • 42" (DN 1050) - 1500#
  • 42" (DN 1050) - 2500#
  • 42" (DN 1050) - 300#
  • 42" (DN 1050) - 600#
  • 42" (DN 1050) - 900#
  • 42" (DN 1050) - PN 100
  • 42" (DN 1050) - PN 16
  • 42" (DN 1050) - PN 40

Flange Size - 48” (DN 1200)

  • 48" (DN 1200) - 150#
  • 48" (DN 1200) - 1500#
  • 48" (DN 1200) - 2500#
  • 48" (DN 1200) - 300#
  • 48" (DN 1200) - 600#
  • 48" (DN 1200) - 900#
  • 48" (DN 1200) - PN 100
  • 48" (DN 1200) - PN 16
  • 48" (DN 1200) - PN 40

Flange Size - 5” (DN 125)

  • 5" (DN 125) - 150#
  • 5" (DN 125) - 1500#
  • 5" (DN 125) - 2500#
  • 5" (DN 125) - 300#
  • 5" (DN 125) - 600#
  • 5" (DN 125) - 900#
  • 5" (DN 125) - PN 100
  • 5" (DN 125) - PN 16
  • 5" (DN 125) - PN 40

Flange Size - 6” (DN 150)

  • 6" (DN 150) - 150#
  • 6" (DN 150) - 1500#
  • 6" (DN 150) - 2500#
  • 6" (DN 150) - 300#
  • 6" (DN 150) - 600#
  • 6" (DN 150) - 900#
  • 6" (DN 150) - PN 100
  • 6" (DN 150) - PN 16
  • 6" (DN 150) - PN 40

Flange Size - 60” (DN 1500)

  • 60" (DN 1500) - 150#
  • 60" (DN 1500) - 1500#
  • 60" (DN 1500) - 2500#
  • 60" (DN 1500) - 300#
  • 60" (DN 1500) - 600#
  • 60" (DN 1500) - 900#
  • 60" (DN 1500) - PN 100
  • 60" (DN 1500) - PN 16
  • 60" (DN 1500) - PN 40

Flange Size - 7” (DN 175)

  • 7" (DN 175) - 150#
  • 7" (DN 175) - 1500#
  • 7" (DN 175) - 2500#
  • 7" (DN 175) - 300#
  • 7" (DN 175) - 600#
  • 7" (DN 175) - 900#
  • 7" (DN 175) - PN 100
  • 7" (DN 175) - PN 16
  • 7" (DN 175) - PN 40

Flange Size - 72” (DN 1800)

  • 72" (DN 1800) - 150#
  • 72" (DN 1800) - 1500#
  • 72" (DN 1800) - 2500#
  • 72" (DN 1800) - 300#
  • 72" (DN 1800) - 600#
  • 72" (DN 1800) - 900#
  • 72" (DN 1800) - PN 100
  • 72" (DN 1800) - PN 16
  • 72" (DN 1800) - PN 40

Flange Size - 78” (DN 1950)

  • 78" (DN 1950) - 150#
  • 78" (DN 1950) - 1500#
  • 78" (DN 1950) - 2500#
  • 78" (DN 1950) - 300#
  • 78" (DN 1950) - 600#
  • 78" (DN 1950) - 900#
  • 78" (DN 1950) - PN 100
  • 78" (DN 1950) - PN 16
  • 78" (DN 1950) - PN 40

Flange Size - 8” (DN 200)

  • 8" (DN 200) - 150#
  • 8" (DN 200) - 1500#
  • 8" (DN 200) - 2500#
  • 8" (DN 200) - 300#
  • 8" (DN 200) - 600#
  • 8" (DN 200) - 900#
  • 8" (DN 200) - PN 100
  • 8" (DN 200) - PN 16
  • 8" (DN 200) - PN 40

Flange Size - 84” (DN 2100)

  • 84" (DN 2100) - 150#
  • 84" (DN 2100) - 1500#
  • 84" (DN 2100) - 2500#
  • 84" (DN 2100) - 300#
  • 84" (DN 2100) - 600#
  • 84" (DN 2100) - 900#
  • 84" (DN 2100) - PN 100
  • 84" (DN 2100) - PN 16
  • 84" (DN 2100) - PN 40

Flange Size - 90” (DN 2250)

  • 90" (DN 2250) - 150#
  • 90" (DN 2250) - 1500#
  • 90" (DN 2250) - 2500#
  • 90" (DN 2250) - 300#
  • 90" (DN 2250) - 600#
  • 90" (DN 2250) - 900#
  • 90" (DN 2250) - PN 100
  • 90" (DN 2250) - PN 16
  • 90" (DN 2250) - PN 40

Flange Size - 96” (DN 2400)

  • 96" (DN 2400) - 150#
  • 96" (DN 2400) - 1500#
  • 96" (DN 2400) - 2500#
  • 96" (DN 2400) - 300#
  • 96" (DN 2400) - 600#
  • 96" (DN 2400) - 900#
  • 96" (DN 2400) - PN 100
  • 96" (DN 2400) - PN 16
  • 96" (DN 2400) - PN 40

Humidity

  • 0 to 100 % RH

Input Power

  • 1-5 Vdc HART Low Power: 9-28 Vdc
  • 4-20 mA HART: 10.5-42.4 Vdc
  • FOUNDATION Fieldbus: 9-32 Vdc
  • PROFIBUS: 9-32 Vdc

Mounting

  • 150# ANSI
  • 1500# ANSI
  • 2500# ANSI
  • 300# ANSI
  • 600# ANSI
  • 900# ANSI
  • DN PN 100 Flange
  • DN PN 16 Flange
  • DN PN 40 Flange
  • None

NACE & NIST

  • NACE MR-0175, ISO 15156

O-Ring Material

  • Buna-N
  • Glass-Filled PTFE
  • Graphite-Filled PTFE

Output

  • 2.4 GHz DSSS
  • 2-Wire 4-20 mA
  • 3-Wire 1-5 Vdc

Overpressure & Static Pressure Limits

  • psig: 750 to 4,500 (bar: 51.7 to 310.3, kPa: 5,171 to 31,026)

Power Supply Effect

  • ± 0.005 % of Calibrated Span Per Volt

Pressure Range

  • bar: 0 to 2.4
  • inH₂O: 0 to 1,000 (mbar: 0 to 2488)
  • kPa: 0 to 249
  • psi: 0 to 36.12

Pressure Type

  • Differential

Process Temperature

  • -40° to 149° C (-40° to 300° F)

Stability

  • ± 0.2 % of URL for 10-Years

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration Effect

  • > ± 0.1 % of URL

Volumetric Displacement

  • > 0.005 in³ (0.08 cm³)

Wetted Materials

  • 316 Stainless Steel
  • 316L Stainless Steel
  • Alloy 400 or Monel
  • Hastelloy C-276
